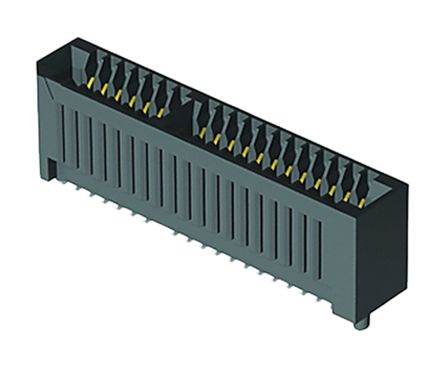

MECF-08-02-L-DV-WT

SAMTEC  MECF-08-02-L-DV-WT  连接器, MECF系列, 卡边缘, 16 触点, 插座, 1.27 mm, 表面安装

1.27mm MECF 系列微型边缘卡插座

1.27mm MECF 系列印刷电路板微型边缘卡插座提供 28+ Gbps 解决方案和双排设计，可接受多达 100 个极化镀金触点。 这些 1.27mm MECF 系列微型边缘卡插座采用印刷电路板垂直安装，带有印刷电路板校准引脚，可接受 1.60mm 和 2.36mm 厚的卡。 部件号前缀带有 -WT 的 1.27mm MECF 微型边缘卡插座具有焊接插片选项，此为 2.36mm 厚度的卡标配，在 1.60mm 厚度的卡上可选。

得捷:
CONN EDGE DUAL FMALE 16POS 0.05

立创商城:
1.27mm P数:16

欧时:
Samtec MECF 系列 1.27mm 节距 2 行 16 路 直向 SMT 母 边缘连接器 MECF-08-02-L-DV-WT

e络盟:
卡边连接器, 双侧, 2.36 mm, 16 触芯, 表面安装, 直行, 焊接

艾睿:
Do more on a smaller budget by implementing this MECF-08-02-L-DV-WT smart card connector from Samtec for your printed circuit boards. This F connector&s;s 16 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 1.27 mm. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 280 VAC. It has a female type gender. This device has a maximum current rating of 3.5 A/contact. This product is 8.78 mm tall. This card edge connector has an operating temperature of -55 to 125 °C. MECF-08-02-L-DV-WT is housed in natural liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Card Edge F 16 POS 1.27mm Solder ST SMD
