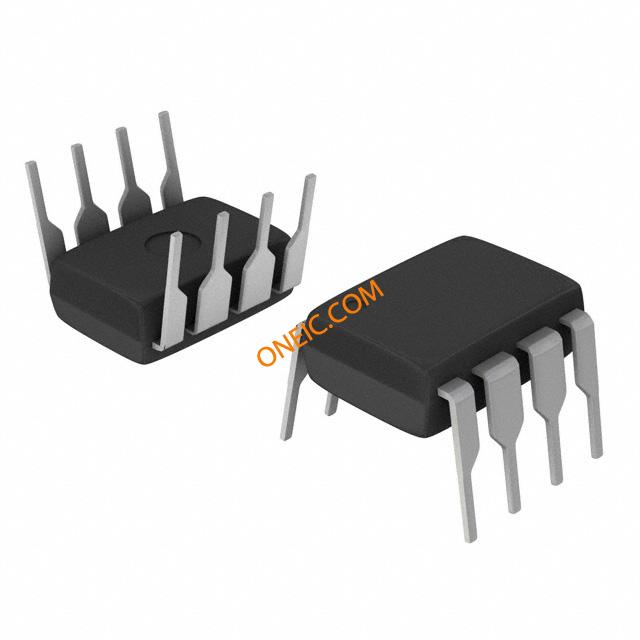

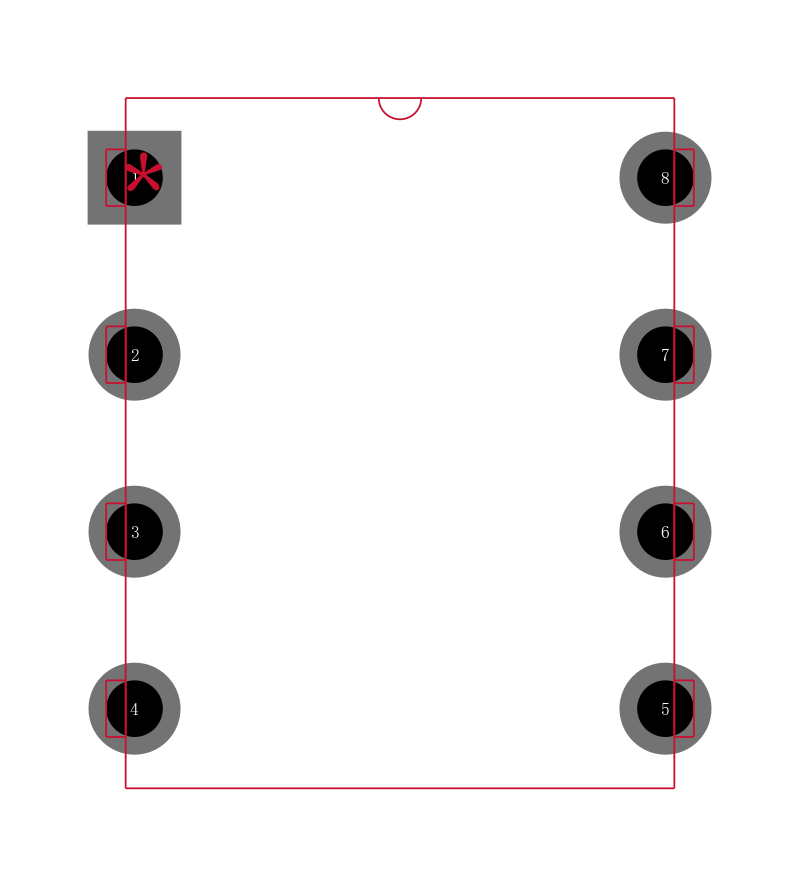

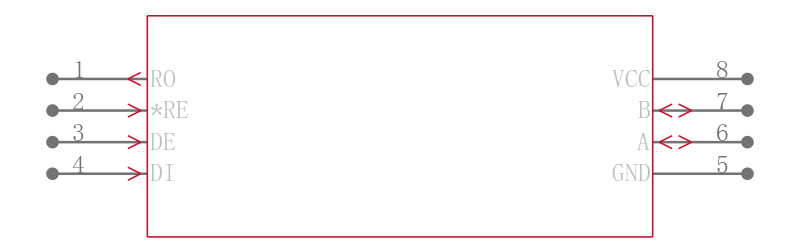

± 15KVESD保护，失效保护，高速（ 10Mbps的） ，限摆率限制RS - 485 / RS -422收发器 【15kVESD-Protected,Fail-Safe,High-Speed 10Mbps, Slew-Rate-Limited RS-485/RS-422 Transceivers
General Description
The MAX3080E–MAX3089E are ±15kV electrostatic discharge ESD-protected, high-speed transceivers for RS-485/RS-422 communication that contain one driver and one receiver. These devices feature fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled high impedance.
The MAX3080E/MAX3081E/MAX3082E feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 115kbps. The MAX3083E/MAX3084E/MAX3085E offer higher driver output slew-rate limits, allowing transmit speeds up to 500kbps. The MAX3086E/MAX3087E/ MAX3088Es’ driver slew rates are not limited, making transmit speeds up to 10Mbps possible. The MAX3089E’s slew rate is
selectable between 115kbps, 500kbps, and 10Mbps by driving a selector pin with a single three-state driver. All devices feature enhanced ESD protection. All transmitter outputs and receiver inputs are protected to ±15kV using the Human Body Model.
Features
♦ESD Protection for RS-485 I/O Pins ±15kV, Human Body Model
♦True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility
♦Enhanced Slew-Rate Limiting Facilitates Error-Free Data TransmissionMAX3080E–MAX3085E/MAX3089E
♦1nA Low-Current Shutdown Mode Except MAX3081E/MAX3084E/MAX3087E
♦Pin-Selectable Full/Half-Duplex Operation MAX3089E
♦Phase Controls to Correct for Twisted-Pair Reversal MAX3089E
♦Allow Up to 256 Transceivers on the Bus
Applications
RS-422/RS-485 Communications
Level Translators
Transceivers for EMI-Sensitive Applications
Industrial-Control Local Area Networks
