PLY10AS2121R4R2B

PLY10AS2121R4R2B图片1
PLY10AS2121R4R2B图片2
PLY10AS2121R4R2B图片3
PLY10AS2121R4R2B概述

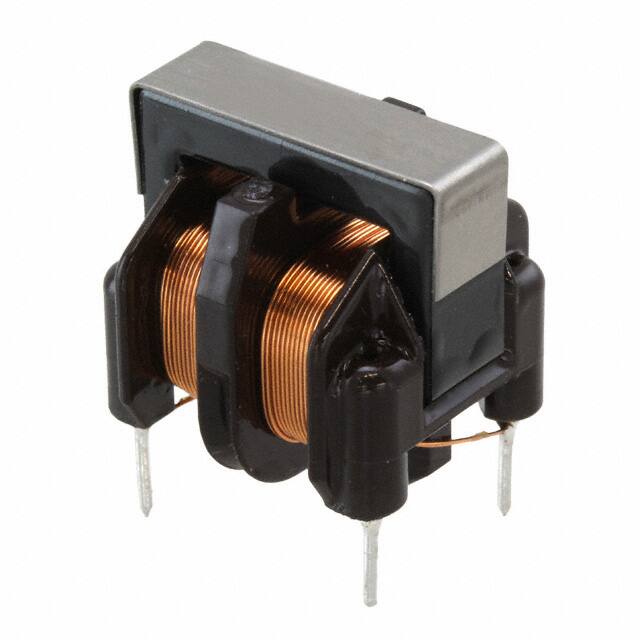

Common Mode Choke Through Hole Power Line 1.4A 2 Lines -25℃ ~ 60℃

2 Line Common Mode Choke Through Hole 1.4A DCR


得捷:
CMC 1.4A 2LN TH


艾睿:
Common Mode Chokes Dual 2.1mH 1.4A Thru-Hole Box


Win Source:
Common Mode Choke Through Hole Power Line 1.4A 2 Lines -25°C ~ 60°C


PLY10AS2121R4R2B中文资料参数规格
技术参数

额定电压AC 300 V

电感 2.1 mH

额定电流Max 1.4 A

工作温度Max 60 ℃

工作温度Min -25 ℃

额定电压 300 VAC

封装参数

安装方式 Through Hole

封装 Vertical, 4 PC Pin

外形尺寸

长度 18 mm

宽度 16 mm

高度 17.5 mm

封装 Vertical, 4 PC Pin

物理参数

工作温度 -25℃ ~ 60℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PLY10AS2121R4R2B
型号: PLY10AS2121R4R2B
制造商: muRata 村田
描述:Common Mode Choke Through Hole Power Line 1.4A 2 Lines -25℃ ~ 60℃
