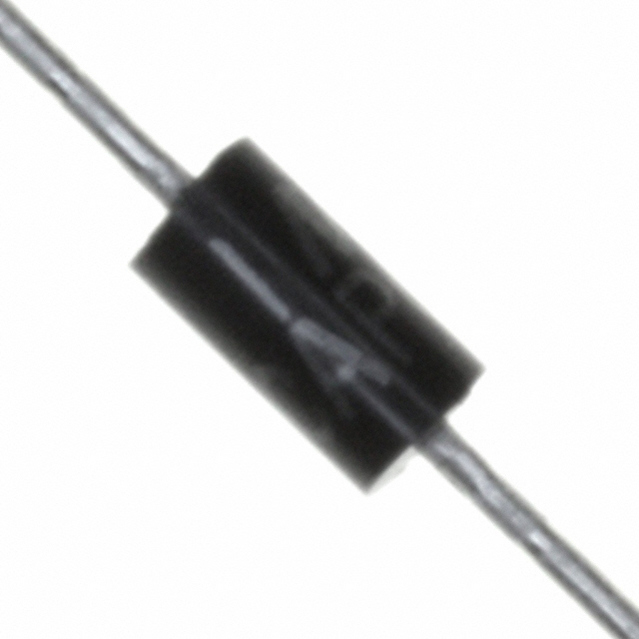

P6KE75CA-TP

双向 64.1V

103V Clamp 5.8A Ipp Tvs Diode Through Hole DO-15

立创商城:
双向 Vrwm:64.1V 600W

得捷:
TVS DIODE 64.1VWM 103VC DO15

艾睿:
This P6KE75CA-TP TVS diode developed by Micro Commercial Components can help protect your expensive equipment and electronics. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 103 V and minimum breakdown voltage is 71.3 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 64.1V 600W Automotive 2-Pin DO-15 T/R
