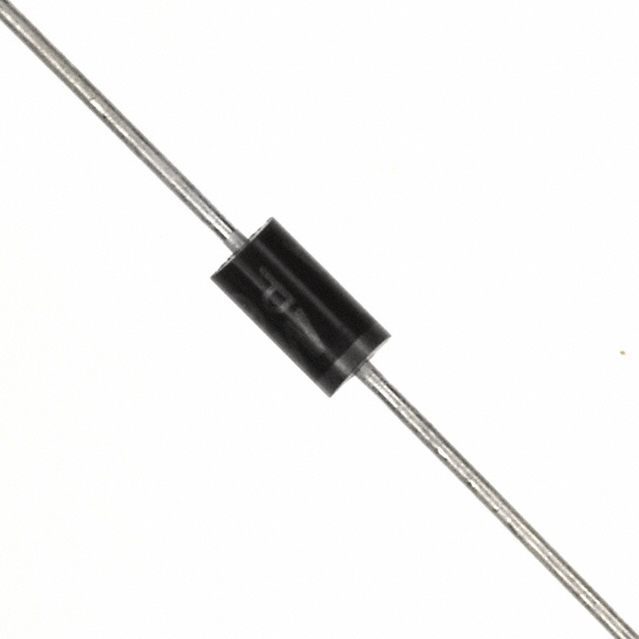

P6KE75A-TP

单向 64.1V

103V Clamp 5.8A Ipp Tvs Diode Through Hole DO-15

得捷:
TVS DIODE 64.1VWM 103VC DO15

立创商城:
单向 Vrwm:64.1V 600W

艾睿:
This P6KE75A-TP TVS diode from Micro Commercial Components protects against overvoltages. Its peak pulse power dissipation is 600 W. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 103 V and minimum breakdown voltage is 71.3 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Chip1Stop:
Diode TVS Single Uni-Dir 64.1V 600W 2-Pin DO-15 T/R
