P6KE68CA-TP

双向 58.1V

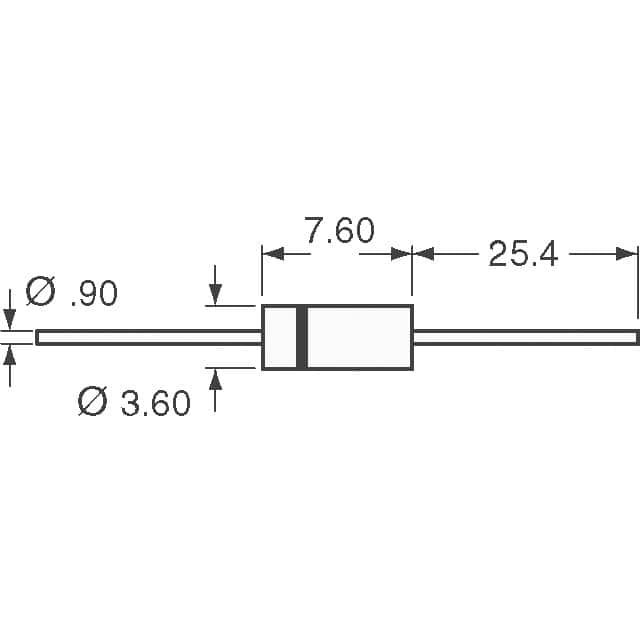

92V 夹子 6.5A Ipp TVS - 通孔 DO-15

得捷:
TVS DIODE 58.1VWM 92VC DO15

立创商城:
双向 Vrwm:58.1V

贸泽:
ESD Suppressors / TVS Diodes BI-DIR 600W 6.5A

艾睿:
Take the extra step in your circuitry by implementing surge protection with this P6KE68CA-TP TVS diode from Micro Commercial Components. This device&s;s maximum clamping voltage is 92 V and minimum breakdown voltage is 64.6 V. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 58.1V 600W Automotive 2-Pin DO-15 T/R
