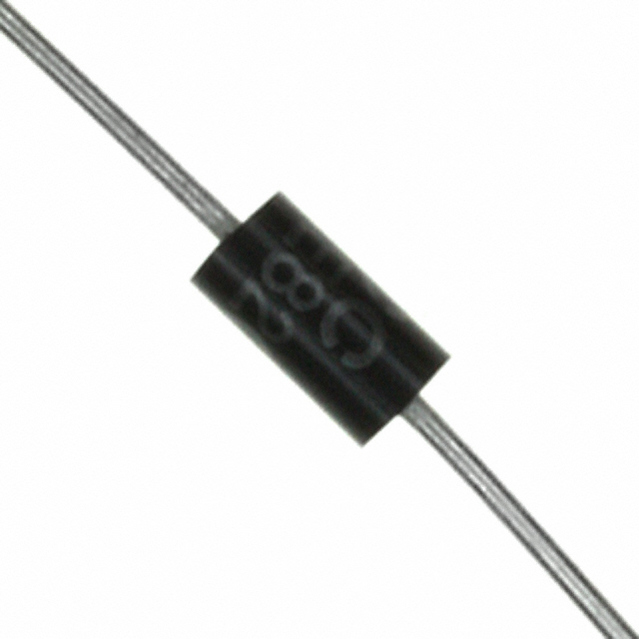

P6KE82CA-TP

双向 70.1V

113V Clamp 5.3A Ipp Tvs Diode Through Hole DO-15

得捷:
TVS DIODE 70.1VWM 113VC DO15

立创商城:
双向 Vrwm:70.1V 600W

艾睿:
Take the extra step in your circuitry by implementing surge protection with this P6KE82CA-TP TVS diode from Micro Commercial Components. This device&s;s maximum clamping voltage is 113 V and minimum breakdown voltage is 77.9 V. Its maximum leakage current is 1 μA. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 70.1V 600W Automotive 2-Pin DO-15 T/R
