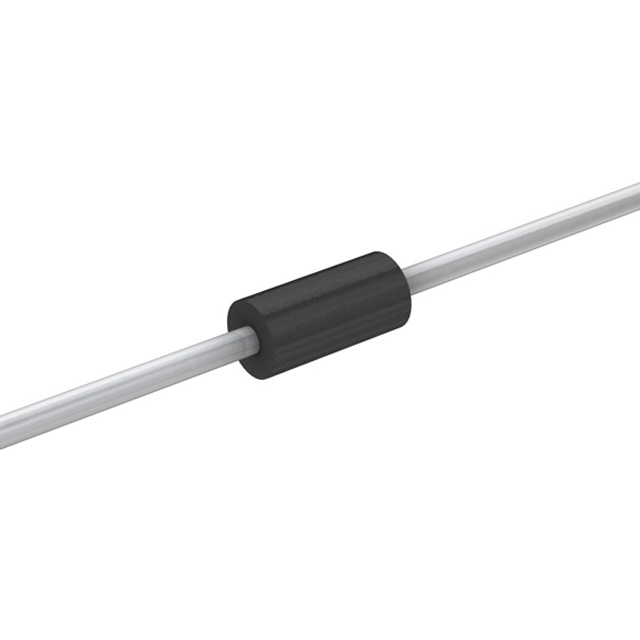

P4KE15CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

21.2V 夹子 19.3A Ipp TVS - 通孔 DO-204AL（DO-41）

得捷:
TVS DIODE 12.8VWM 21.2VC DO204AL

立创商城:
双向 Vrwm:12.8V 400W

艾睿:
Protect your critical electronic applications from sudden overvoltage conditions with this P4KE15CA TVS diode from Littelfuse. Its test current is 1 mA. This device&s;s maximum clamping voltage is 21.2 V and minimum breakdown voltage is 14.3 V. Its peak pulse power dissipation is 400 W. Its maximum leakage current is 1 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 12.8V 400W 2-Pin DO-204AL T/R

TME:
Diode: transil; 400W; 15V; 19.3A; bidirectional; ±5%; DO41

儒卓力:
**TVS-DIODE BI 0,4KW 15V DO41 **
