1mF -10%~30% 100V 2.9A Φ35mm
**Overview

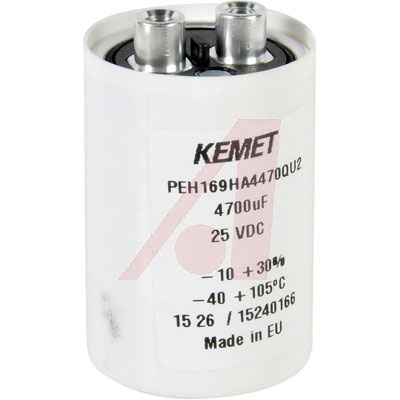

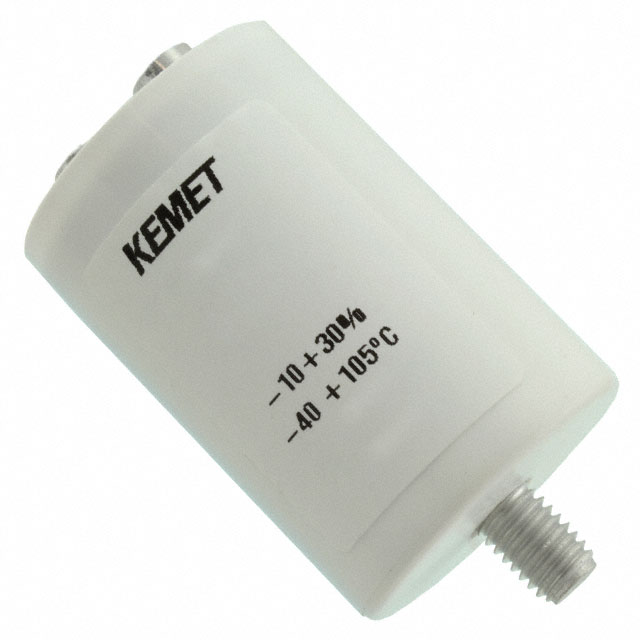

**KEMET"s PEH169 Series is a long-life electrolytic capacitor with outstanding reliability and electrical performance. The device has a polarized all-welded design, heavy duty screw terminals, extended cathode construction, safety vent, and plastic insulation. The PEH169 Series winding is housed in a cylindrical aluminum can with a reinforced molded lid incorporating a safety vent. The sealing system is designed for electrolyte leakage-free operation and a very low gas-diffusion rate of electrolyte. Mechanical contact between the winding and case allows excellent heat transfer from the winding to the ambient, which means cooler operation. Low ESR is the result of a low resistive paper/electrolyte system, at least two tabs per foil and all-welded design.**
Applications
**Typical applications for KEMET"s PEH169 capacitor include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding, and measuring.**
Benefits
**
* High Performance
* Long Life, Up to 18,000 Hours at +105°C VR, IR Applied
* Low ESR and ESL
* High Stability, 10 Years Shelf Life
