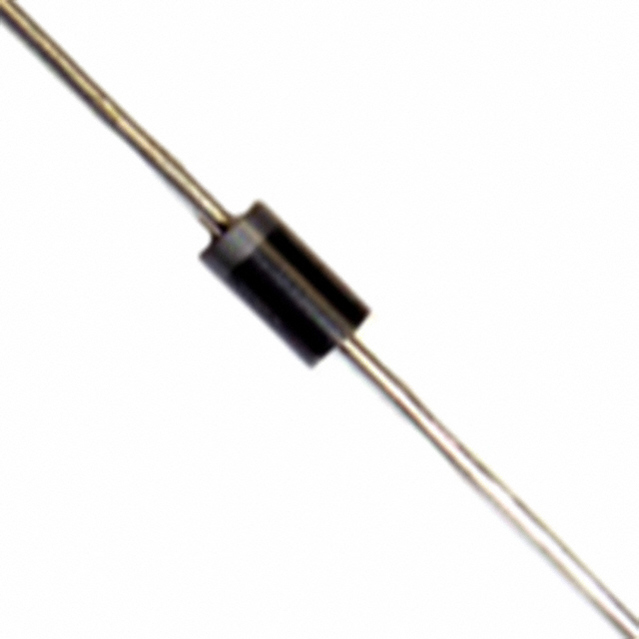

P6KE30A-TP

ESD 抑制器/TVS 二极管 TVS 600W 30V UNIDIRECT DO-15

41.4V Clamp 14.4A Ipp Tvs Diode Through Hole DO-15

得捷:
TVS DIODE 25.6VWM 41.4VC DO15

立创商城:
单向 Vrwm:25.6V 600W

贸泽:
ESD 抑制器/TVS 二极管 TVS 600W 30V UNIDIRECT DO-15

艾睿:
This P6KE30A-TP TVS diode from Micro Commercial Components is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its maximum leakage current is 1 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 41.4 V and minimum breakdown voltage is 28.5 V. Its peak pulse power dissipation is 600 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Verical:
TVS Diode Single Uni-Dir 25.6V 600W Automotive 2-Pin DO-15 T/R
