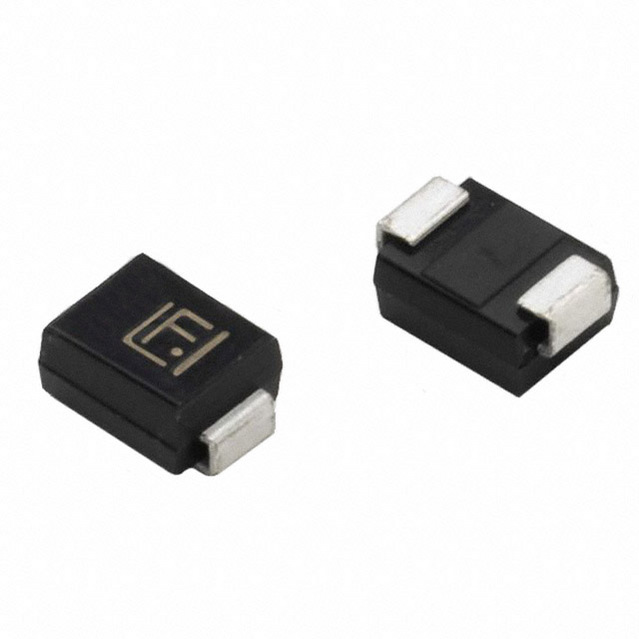

P6SMBJ62C

ESD 抑制器/TVS 二极管 50.2Vso 55.8Vbr 6.8A

FEATURES

• For surface mounted applications in order to optimize board space

• Low profile package

• Built-in strain relief

• Glass passivated junction

• Low inductance

• Excellent clamping capability

• Repetition Rate duty cycle: 0.01%

• Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional types

• Typical IR less than 1 mA above 10V

• High Temperature soldering: 250˚C/10 seconds at terminals

• Plastic packages has Underwriters Laboratory Flammability 94V-O

DEVICES FOR BIPOLAR APPLICATIONS

  For Bidirectional use C or CA Suffix for types SMBJ5.0 thru types SMBJ110e.g. SMBJ5.OC, SMBJ170CA

  Electrical characteristics apply in both directions
