0805 67.8nH ±10% 500mA
67.8nH Unshielded Wirewound Inductor 500mA 380mOhm Max 0805 2012 Metric
得捷:
FIXED IND 67.8NH 500MA 380 MOHM
艾睿:

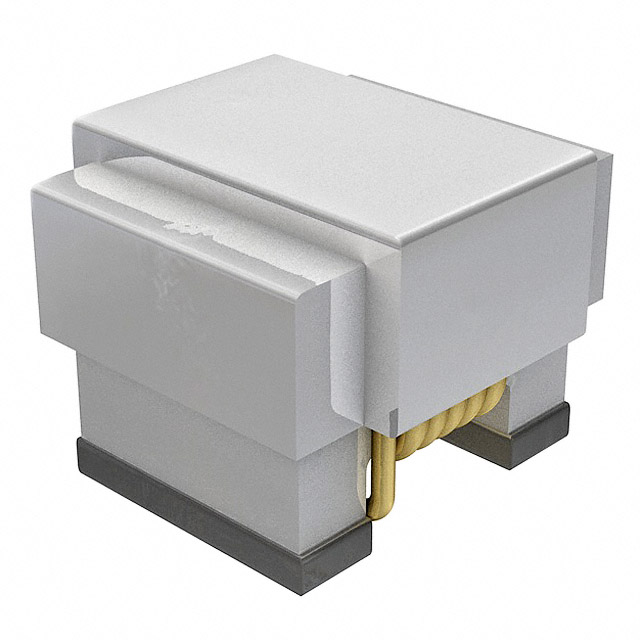

This rf chip PE-0805CD680KTT surface mount inductor from Pulse is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 200M Hz, while its minimum self-resonant frequency is 1.45G Hz. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 380m Ohm. This product is 2.29 mm long, 1.58 mm tall and 1.68 mm deep. It has an inductance of 67.8n H. It has a tolerance of 10%. This device utilizes wirewound technology.
Verical:
Inductor RF Chip Wirewound 0.0678uH 10% 200MHz 60Q-Factor Ceramic 0.5A 0.38Ohm DCR 0805 T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PE-0805CD680KTT Pulse Electronics 普思电子 | 当前型号 | 当前型号 |
PM0805-68NK-RC 伯恩斯 | 功能相似 | PE-0805CD680KTT和PM0805-68NK-RC的区别 |
