0805 217nH ±10% 400mA
217nH Unshielded Wirewound Inductor 400mA 700mOhm Max 0805 2012 Metric
得捷:
FIXED IND 217NH 400MA 700 MOHM
艾睿:

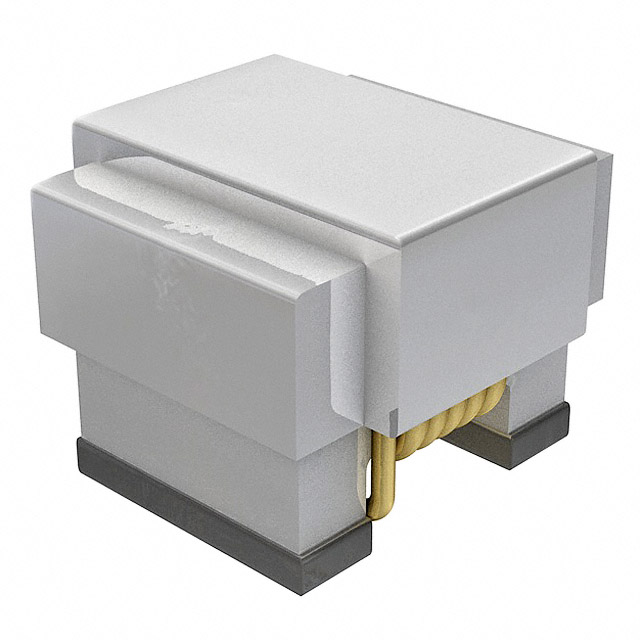

This rf chip PE-0805CD221KTT surface mount inductor from Pulse is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 700m Ohm. It has an inductance of 217n H. It has a tolerance of 10%. This device utilizes wirewound technology. This product is 2.29 mm long, 1.58 mm tall and 1.68 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 850M Hz.
Verical:
Inductor RF Chip Wirewound 0.217uH 10% 100MHz 45Q-Factor Ceramic 0.4A 0.7Ohm DCR 0805 T/R
CDI:
SURFACE MOUNT INDUCTORS-LEAD FREE
