固定电感器 SMD IND
82nH Unshielded Wirewound Inductor 1A 140mOhm Max 1008 2520 Metric
得捷:
FIXED IND 82NH 1A 140 MOHM SMD
贸泽:
固定电感器 SMD IND
艾睿:

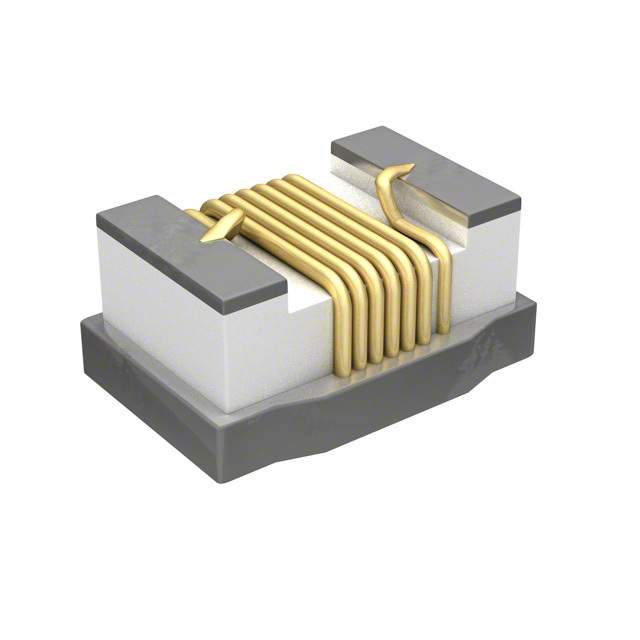

This rf chip PE-1008CD820KTT surface mount inductor from Pulse is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. Its test frequency is 50M Hz, while its minimum self-resonant frequency is 950M Hz. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 140m Ohm. This device utilizes wirewound technology. It has a tolerance of 10%. It has an inductance of 82n H.
安富利:
Ind RF Chip Wirewound 82nH 10% 50MHz 60Q-Factor Ceramic 1A 1008 T/R
Verical:
Inductor RF Chip Wirewound 0.082uH 10% 50MHz 60Q-Factor Ceramic 1A 0.14Ohm DCR 1008 T/R
Win Source:
82nH Unshielded Wirewound Inductor 1A 140 mOhm Max 1008 2520 Metric
额定电流 1 A
容差 10 %
电感 82 nH
自谐频率 950 MHz
Q值 60
产品系列 1008CD
电感公差 ±10 %
测试频率 50 MHz
电阻DC) ≤140 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 140 mΩ
安装方式 Surface Mount
封装 1008
长度 2.92 mm
宽度 2.79 mm
高度 2.29 mm
封装 1008
工作温度 -40℃ ~ 125℃
产品生命周期 End of Life
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
