0805 68nH ±5% 500mA
68nH Unshielded Wirewound Inductor 500mA 180mOhm Max 0805 2012 Metric
得捷:
FIXED IND 68NH 500MA 180MOHM SMD
艾睿:

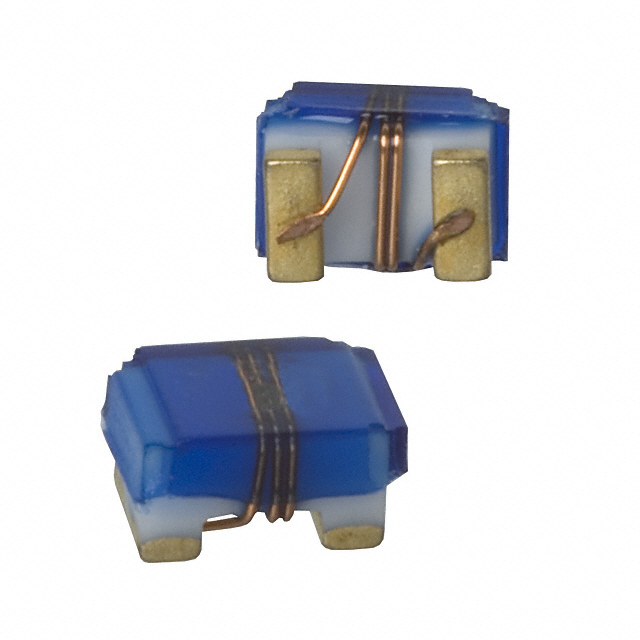

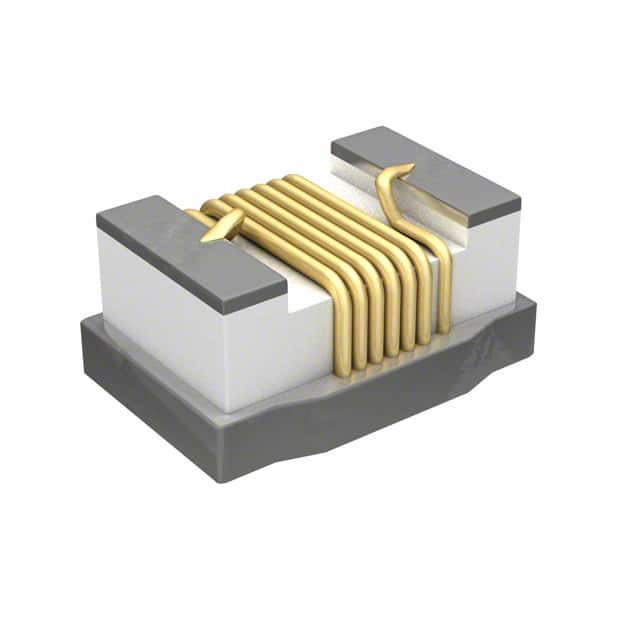

Make any circuit look clean and compact using this rf chip PE-0805CM680JTT surface mount inductor from Pulse. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 200M Hz, while its minimum self-resonant frequency is 1.35G Hz. It has an inductance of 68n H. It has a tolerance of 5%. This device utilizes wirewound technology. This product is 2.29 mm long, 1.58 mm tall and 1.68 mm deep. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 180m Ohm.
安富利:
Ind RF Chip Wirewound 68nH 5% 200MHz 60Q-Factor Ceramic 500mA 0805 T/R
Chip1Stop:
Ind RF Chip Wirewound 68nH 5% 200MHz 60Q-Factor Ceramic 500mA 0805 T/R
Verical:
Inductor RF Chip Wirewound 0.068uH 5% 200MHz 60Q-Factor Ceramic 0.5A 0.18Ohm DCR 0805 T/R
额定电流 500 mA
电感 0.068 µH
自谐频率 1350 MHz
Q值 60
产品系列 0805CM
屏蔽 No
电感公差 ±5 %
测试频率 200 MHz
电阻DC) ≤180.0 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.18 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.29 mm
宽度 1.68 mm
高度 1.58 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 125℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
