P6SMB33CAT3

600瓦峰值功率齐纳瞬态电压抑制器 600 Watt Peak Power Zener Transient Voltage Suppressors

600 Watt Peak Power Zener Transient Voltage Suppressors

.

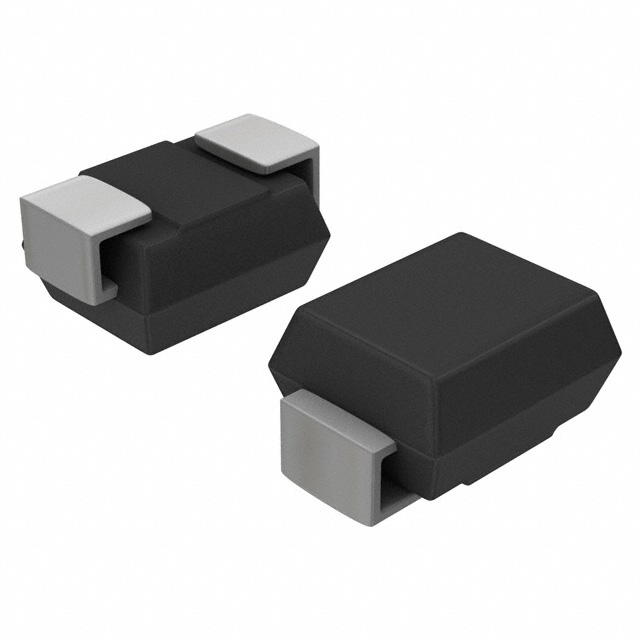

PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS

9.4−78 VOLTS 600 WATT PEAK POWER

The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener

impedance and fast response time. The SMB series is supplied in ’s  exclusive,  cost-effective,  highly  reliable Surmeticpackage and is ideally suited for use in communication

systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

Features

•Working Peak Reverse Voltage Range − 9.4 to 77.8 V

•Standard Zener Breakdown Voltage Range − 11 to 91 V

•Peak Power − 600 W @ 1 ms

•ESD Rating of Class 3 >16 KV per Human Body Model

•Maximum Clamp Voltage @ Peak Pulse Current

•Low Leakage < 5 A Above 10 V

•UL 497B for Isolated Loop Circuit Protection

•Response Time is Typically < 1 ns

•Pb−Free Packages are Available
