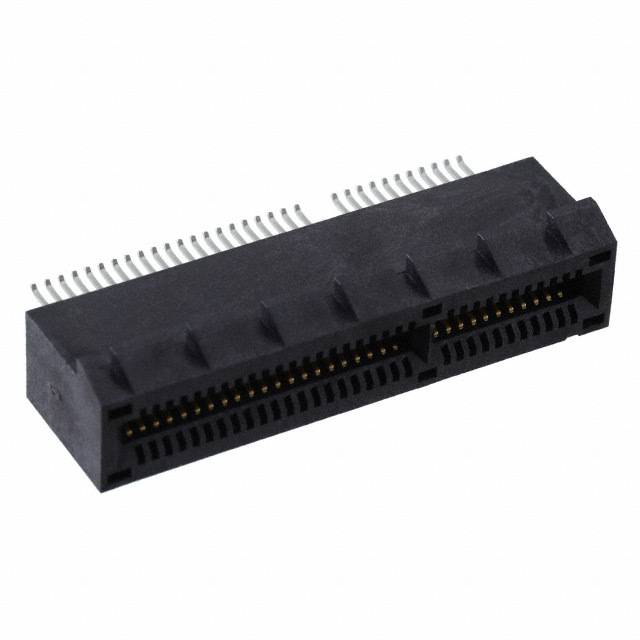

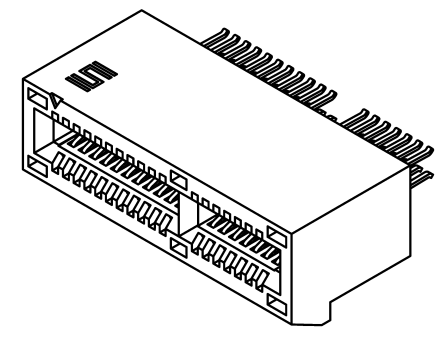

SAMTEC PCIE-064-02-F-D-EMS2 连接器, PCIE系列, PCIe, 64 触点, 插座, 1 mm, 表面安装
PCIE Series PCI Express Card Sockets
These PCIE Series PCI Express Sockets from samtec take 1.60 mm cards with a nominal insertion depth of 8.0 mm. The contacts of this range of PCIE Series PCI Express Sockets have Gold Flash plating with Tin plating on the PCB tails.
The above board height of the PCIE Series Through Hole, RA, PCI Express Sockets is 9.45 mm with a width of 18.85 mm.
The above board height of the PCIE Series Through Hole, Vertical, PCI Express Sockets is 11.0 mm with a width of 8.6 mm.
The board extension length of the PCIE Series Edge Mount, PCI Express Sockets is 11.05 mm with a width of 8.41 mm.
Post lengths for the Through Hole vertical and horizontal versions of the PCIE Series, PCI Express Sockets are 2.31 mm in four staggered rows on a 2.0 mm pitch.
Post length for the Edge Mount version of the PCIE Series, PCI Express Sockets is 4.5 mm.
### 板边 -
触点数 64
极性 Female
触点电镀 Gold
额定电流 2.5 A
排数 2
针脚数 64
额定电流Max 2.2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装 -
长度 39 mm
宽度 8.41 mm
高度 11.05 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
