P13-4023

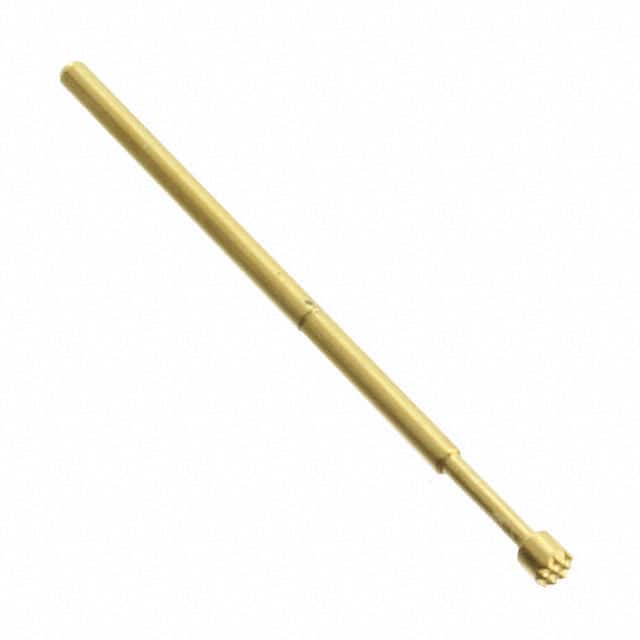

RS Pro Spring Probe with Crosscut HeadBrought to you under the trusted RS Pro Brand, this crosscut headed spring spade terminal probe is designed to be used with an appropriate receptacle, which is ordered separately. Having the probe separate from the receptacle allows easy replacement of damaged spring test probes without disturbing the wiring. The probe is suited ideally in development and production for automatic test equipment ATE and test jigs, where fast testing of multipoint PCBs and sub-assemblies is required. Receptacles can be push fitted into the mounting plate to provide an airtight seal without the use of adhesives. The crosscut head is ideal for test lands, pads and leads. The sharp points penetrate and provide excellent electrical contact. An inserter is available for the 2.54mm pitch receptacles See stock number 434-790.### Features and Benefits• Contact Resistance of 50mΩ • Current Rating of 3A • Gold Plated • Spring Pressure of 1.47 Ng ### 弹簧探针 - ATE 和测试

3A Serrated Head

欧时:
RS Pro 弹簧探头，带横切头可信赖的 RS Pro 品牌为您提供的此横切头弹簧舌片接线端子探头设计用于相应插座（可单独订购）。将探头与插座分离，从而可易于更换损坏的弹簧测试探头，而不会干扰布线。 该探头特别适用于（在开发和生产方面）自动测试设备 ATE 和测试夹等需要快速测试多点印刷电路板和子组件的应用。插座可推入到安装板中，以提供气封，无需使用粘合剂。 横切头特别适用于测试焊盘、垫和导线。尖端点渗透，并提供出色的电触点。 为 2.54mm 节距插座提供插件（参见库存号 434-790。）### 特点和优势• 触点电阻为 50mΩ • 额定电流 3A • 镀金 • 弹簧压力为 1.47 Ng

得捷:
1.27MM CENTER TWO PART PROBE

贸泽:
Contact Probes 1.27mm SPRING PROBE 2 PART SERRATED HEAD

e络盟:
触芯, 连接器, 弹簧探针, 1.27 mm, 华夫格（方格）形, 1.5 A, 16.55 mm, 90 g

安富利:
Two Part Spring Probe, 1.27mm minimum pitch, Ø0.9mm Serrated Head

Chip1Stop:
Spring Spade Terminal 16.55mm 0.9mm Gold
