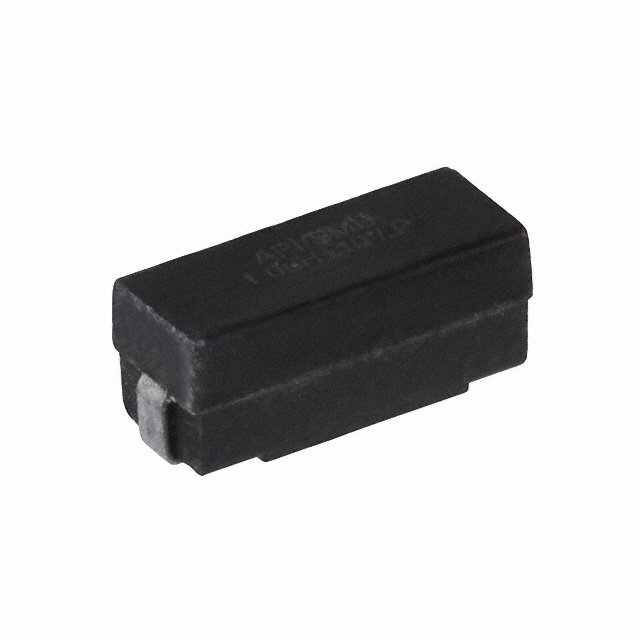

P1330R-224K

Inductor; RF; Ind 220uH; Tol 10%; Cur 223mA; SMT; DCR 2.648Ω

Surface Mount Power Inductors, ± 10% Inductance Tolerance, 0.300 to 0.325 " Length

** Operating Temperature Range:** -55°C to +125°C

** Current Rating at 90°C Ambient:** 35°C Rise

** Maximum Power Dissipation at 90°C: ** 0.210 W

** Inductance:** Measured at 1 V with no DC current

** Incremental Current:** The current at which the inductance will be decreased by a maximum of 5% from its initial zero DC value.

** Optional Tolerances:** 5%, 3% and 2% available

The maximum power dissipation is 0.210 W at 90 °C.
