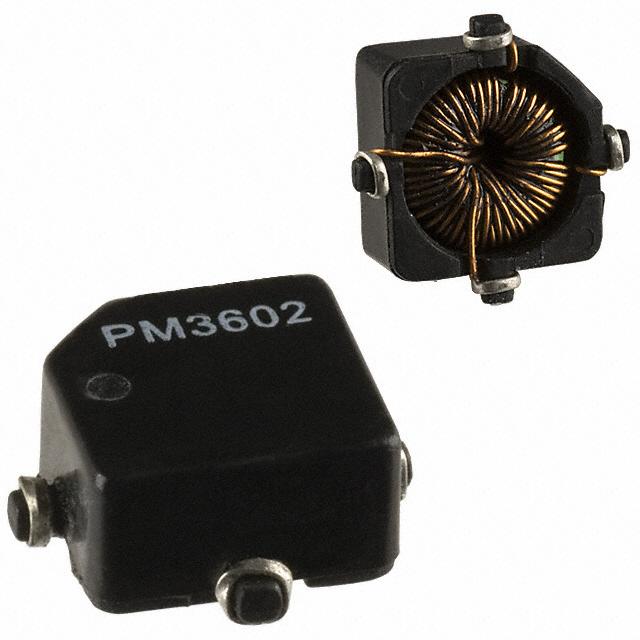

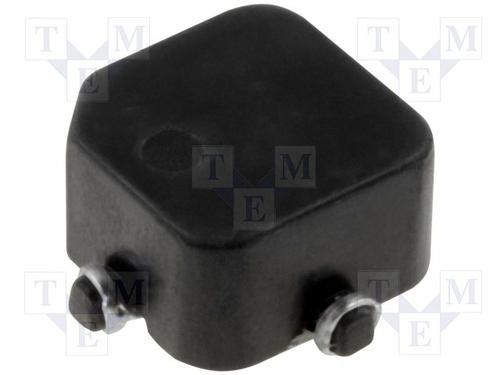

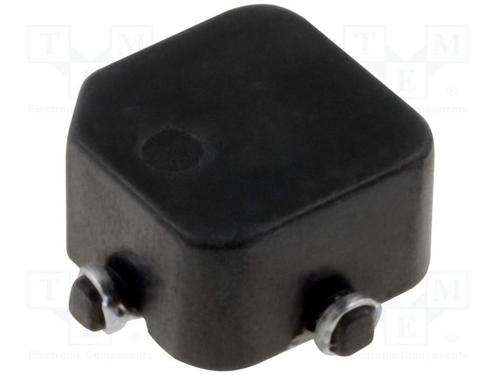

PM3602-25-RC

SMD电感/变压器 SMD Inductor/Transformer

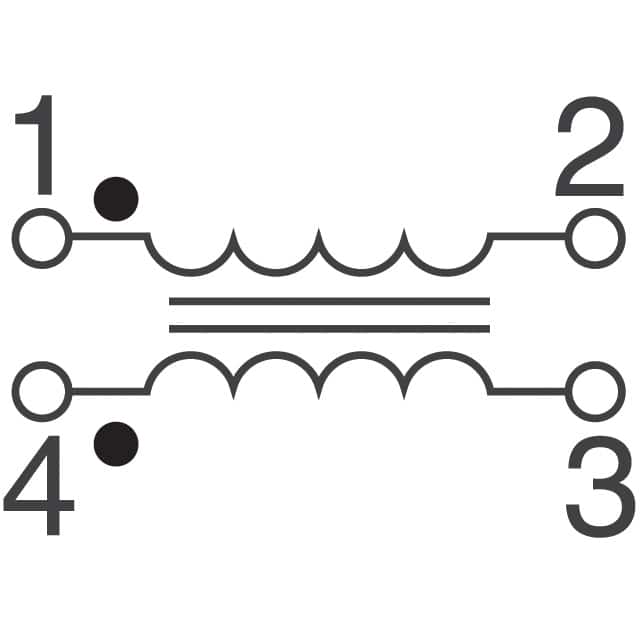

无屏蔽 2 线圈器阵列 100 µH 电感 - 串联连接 25 µH 电感 - 并联连接 98 毫欧最大 直流电阻 DCR - 并联 1.17 A 非标准

得捷:
INDUCT ARRAY 2 COIL 25UH SMD

贸泽:
耦合电感 25uH 20%

艾睿:
Save valuable space on a PCB with this power PM3602-25-RC surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 1.17|0.59 A with a maximum resistance of 98m|390m Ohm. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 11.48 mm long, 5.72 mm tall and 11.48 mm deep. It has an inductance of 25u|100u H.

Chip1Stop:
Ind Power Wirewound 25uH/100uH 20% Iron 1.17A/0.59A T/R

TME:
Inductor: wire; SMD; 11.5x9x5.72mm; ±20%; -55÷125°C; No.of wind:2

Verical:
Inductor Power Wirewound 25uH/100uH 20% Iron 1.17A/0.59A 0.098Ohm/0.39Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3602-25-RC  Inductor, Power, 25 µH, 20%, 0.098 ohm, 1.17 A, 11.48mm x 8.99mm x 5.72mm

MASTER:
Inductor Power Wirewound 25uH/100uH 20% Iron 1.17A/0.59A 98mOhm/390mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 25uH/100uH 20% Iron 1.17A/0.59A 98mOhm/390mOhm DCR T/R
