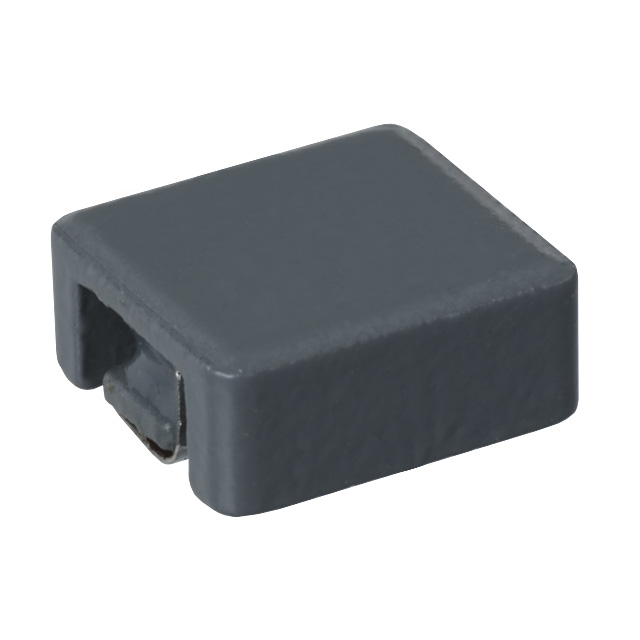

PM7232S-R47M-RC

屏蔽式功率电感器 Shielded Power Inductors

* Formerly model * Shielded construction * Unit height of 3.2 mm * Inductance range: 0.1 µH to 1.5 µH * Current up to 32.5 A * RoHS compliant

得捷:
FIXED IND 470NH 17.5A 4.2MOHM SM

立创商城:
470nH ±20% 4.2mΩ

艾睿:
Make any circuit look clean and compact using this power PM7232S-R47M-RC surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 470n H. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 17.5 A with a maximum resistance of 4.2m Ohm. This product is 7.8 mm long, 3.9 mm tall and 7 mm deep. This device utilizes wirewound technology. It has a tolerance of 20%.

安富利:
Ind Power Shielded Wirewound 470nH 20% 100KHz Iron 26A T/R

Chip1Stop:
Ind Power Shielded Wirewound 470nH 20% 100KHz Iron 17.5A T/R

Verical:
Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Iron 17.5A 0.0042Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM7232S-R47M-RC  Surface Mount Power Inductor, PM7232S Series, 470 nH, 17.5 A, 26 A, Shielded, 4200 µohm

Electro Sonic:
Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Iron 17.5A 0.0042Ohm DCR T/R
