PX2AG1XX016BGAAX

PX2AG1XX016BGAAX图片1
PX2AG1XX016BGAAX图片2
PX2AG1XX016BGAAX图片3
PX2AG1XX016BGAAX图片4
PX2AG1XX016BGAAX图片5
PX2AG1XX016BGAAX图片6
PX2AG1XX016BGAAX概述

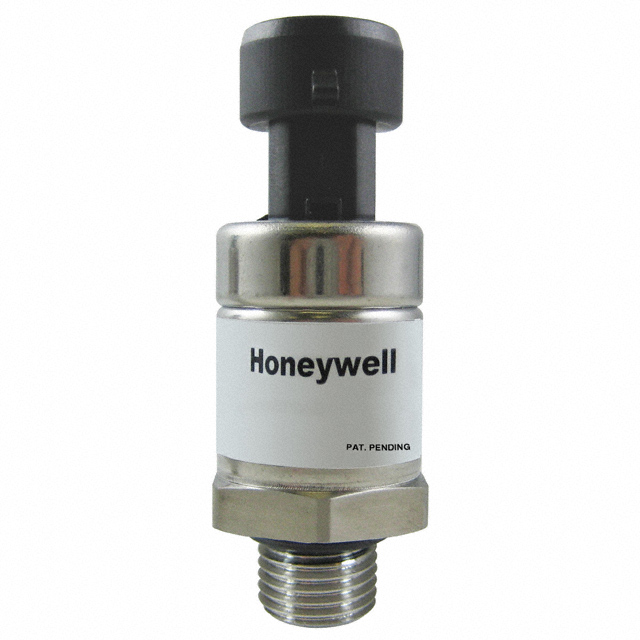

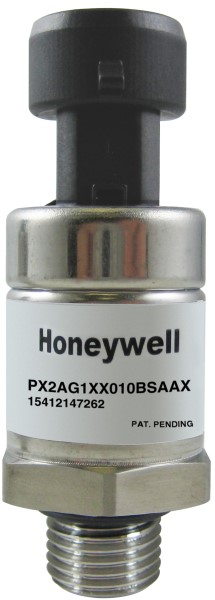

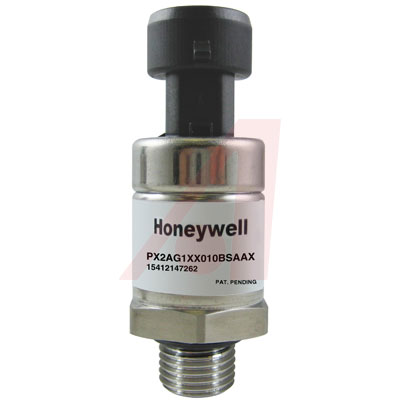

Pressure Sensor 0bar to 16bar Vented Gage 3Pin

Standard, Termination: Packard Metripak 150; Port: G 1/4, Pressure Rating: 0-16 bar, Reference type: Gage, Output Type: Ratiometric 5.0 V, 10%Vs to 90% Vs


得捷:
HEAVY DUTY PRESSURE TRANSDUCER


艾睿:
Industrial Pressure Sensor 0bar to 16bar Vented Gage 3-Pin


Allied Electronics:
Pressure Transducer; Packard Metripak 150; Port: G 1/4, 0-16 bar, Gage


Verical:
Industrial Pressure Sensor 0bar to 16bar Vented Gage 3-Pin


MASTER:
Standard, Termination: Packard Metripak 150; Port: G 1/4, Pressure Rating: 0-16 bar, Reference type: Gage, Output Type: Ratiometric 5.0 V, 10%Vs to 90% Vs


Online Components:
Standard, Termination: Packard Metripak 150; Port: G 1/4, Pressure Rating: 0-16 bar, Reference type: Gage, Output Type: Ratiometric 5.0 ...


PX2AG1XX016BGAAX中文资料参数规格
技术参数

供电电流 5.00 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±0.25 %

电源电压 4.75V ~ 5.25V

封装参数

引脚数 3

封装 Cylinder

外形尺寸

封装 Cylinder

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PX2AG1XX016BGAAX
型号: PX2AG1XX016BGAAX
描述:Pressure Sensor 0bar to 16bar Vented Gage 3Pin
