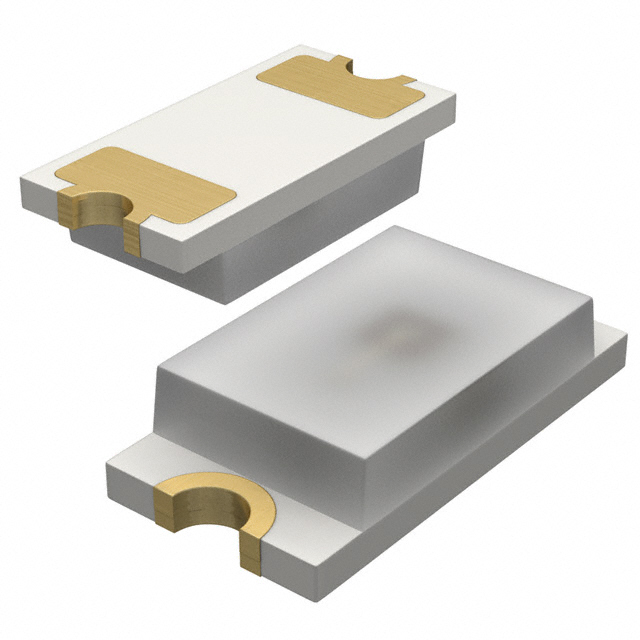

LED 606NM ORANGE 1608
Features
• EXCE™ series
• Compact, Thin size 1.6×0.8mm, t=0.36mm
• LED die consists of 4 elements
• Original device technology enables high brightness and high reliability
立创商城:
SML-E12DWT86
得捷:
LED ORANGE DIFFUSED 0603 SMD
艾睿:
LED Uni-Color Orange 2-Pin Chip 06031608Metric T/R
安富利:
LED Uni-Color Orange 2-Pin Chip LED T/R
Chip1Stop:
LED Uni-Color Orange 2-Pin Chip 06031608Metric T/R
Verical:
LED Uni-Color Orange 2-Pin Chip 06031608Metric T/R
儒卓力:
**CHIP LED 0603 ORANGE **
正向电压 1.9 V
波长 606.5 nm
发光强度 200 mcd
耗散功率 62 W
测试电流 20 mA
正向电流 25 mA
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 62 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.46 mm
封装公制 1608
封装 0603
颜色 Orange
工作温度 -30℃ ~ 85℃
外观颜色 White
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
