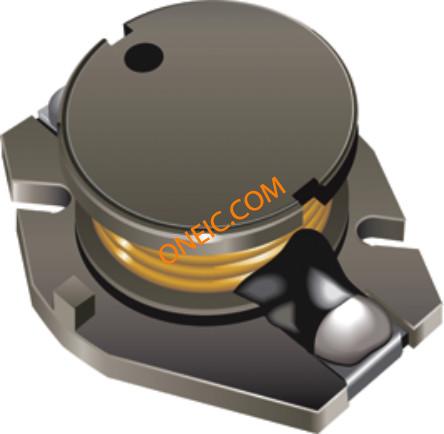

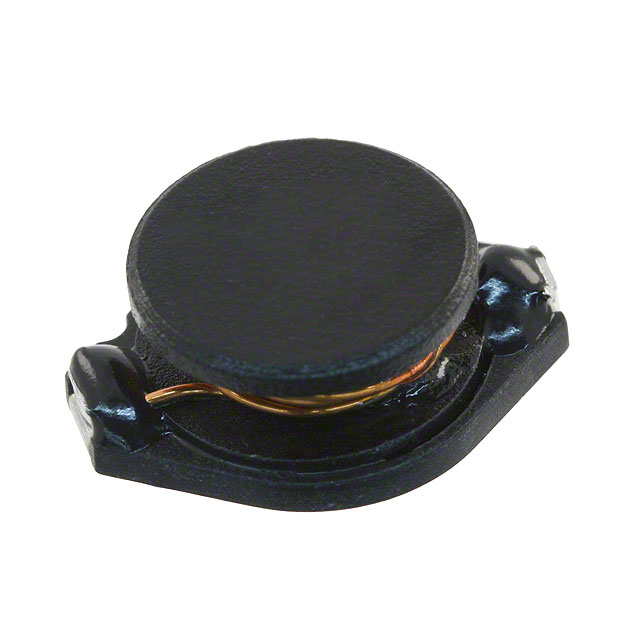

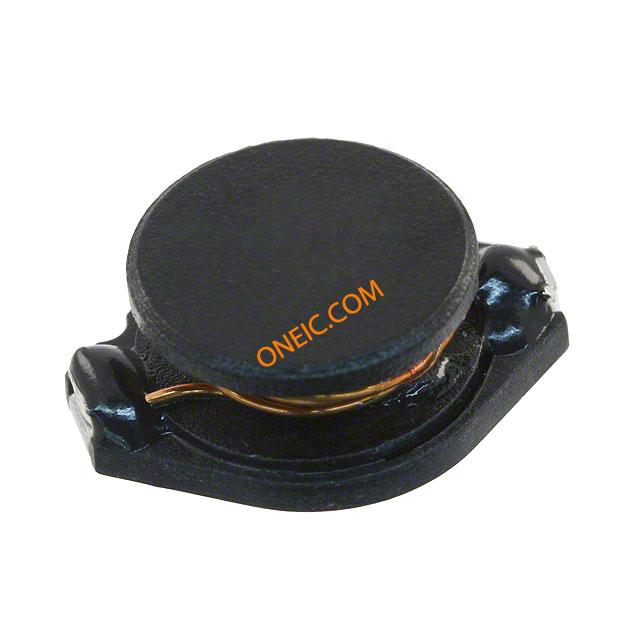

BOURNS SDR1806-3R3ML 表面贴装功率电感器, SDR1806系列, 3.3 µH, ± 20%, 非屏蔽, 9800 µohm, 7.6 A
SDR1806 系列线绕扼流圈
提供 E6 系列
薄型,仅 6.6mm
低至 1μH
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 3.3UH 7.6A 9.8MOHM SMD
欧时:
Bourns SDR1806 系列 铁氧体芯材 3.3 μH 绕线贴片电感器 SDR1806-3R3ML, ±20%容差, 7.6A Idc Q:22
e络盟:
功率电感SMD, 3.3 µH, 7.6 A, 非屏蔽, 17 A, SDR1806系列, 18.3mm x 14mm x 6.6mm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR1806-3R3ML surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 18.6 mm long, 6.9 mm tall and 14.3 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 40MTyp Hz. This device is made with wirewound technology. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 7.6 A with a maximum resistance of 9.8m Ohm. It has a tolerance of 20%.
Allied Electronics:
WireWound SMD Inductor w/ Ferrite Core, 3.3 uH +/-20% 7.6A Idc Q:22
安富利:
Ind Power Wirewound 3.3uH 20% 100KHz 22Q-Factor Ferrite 7.6A T/R
Chip1Stop:
Ind Power Wirewound 3.3uH 20% 100KHz 22Q-Factor Ferrite 7.6A T/R
Verical:
Inductor Power Wirewound 3.3uH 20% 100KHz 22Q-Factor Ferrite 7.6A 0.0098Ohm DCR T/R
Electro Sonic:
Inductor Power Wirewound 3.3uH 20% 100KHz 22Q-Factor Ferrite 7.6A 9.8mOhm DCR T/R
额定电流 7.6 A
容差 ±20 %
电感 3.3 µH
自谐频率 40 MHz
Q值 22.0
屏蔽 No
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤9.8 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.0098 Ω
安装方式 Surface Mount
引脚数 2

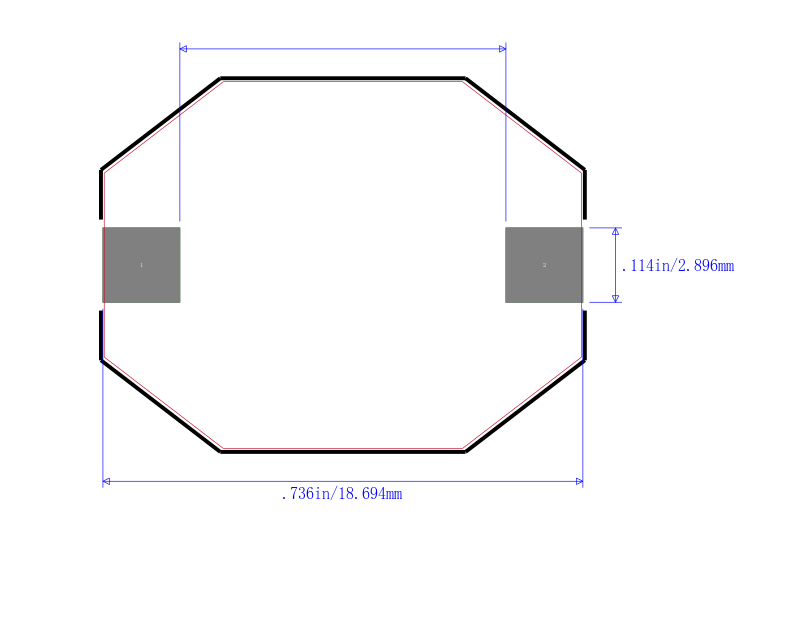

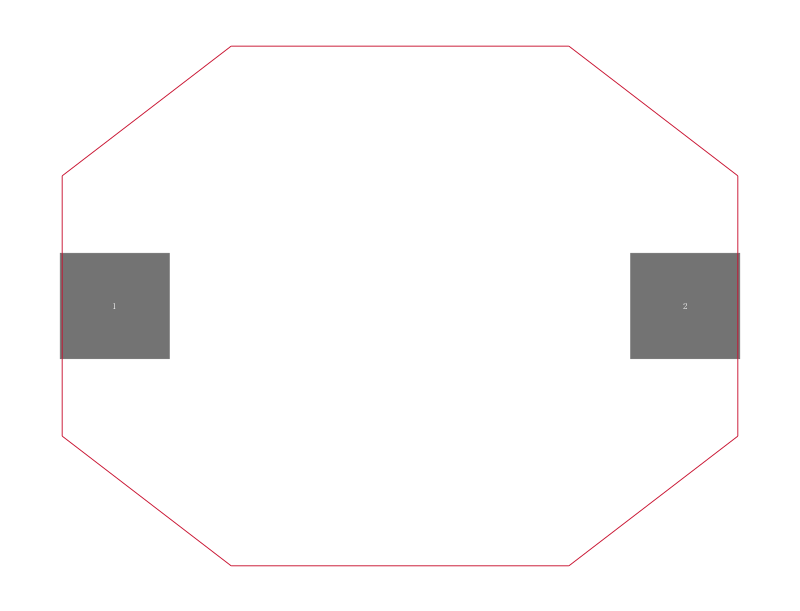

封装 1806
长度 18.3 mm
宽度 14.3 mm
高度 6.9 mm
封装 1806
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR1806-3R3ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM71-503R3LFTR TT Electronics/BI | 类似代替 | SDR1806-3R3ML和HM71-503R3LFTR的区别 |
PM5022-3R3M-RC 伯恩斯 | 功能相似 | SDR1806-3R3ML和PM5022-3R3M-RC的区别 |
DO5010H-332MLB 线艺 | 功能相似 | SDR1806-3R3ML和DO5010H-332MLB的区别 |
