低 - 电源单施密特TRIGGLER BUFFER LOW - POWER SINGLE SCHMITT-TRIGGLER BUFFER
DESCRIPON/ORDERING INFORMATION
The AUP family is TI"s premier solution to the industry"s low-power needs in battery-powered portable
applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity see Figure 1 and Figure 2.
FEATURES
• Available in the Texas Instruments NanoStar™ Package
• Low Static-Power Consumption ICC = 0.9 mA Max
• Low Dynamic-Power Consumption Cpd = 4.4 pF Typ at 3.3 V
• Low Input Capacitance Ci = 1.5 pF Typ
• Low Noise – Overshoot and Undershoot <10% of VCC
• Ioff Supports Partial-Power-Down Mode Operation
• Includes Schmitt-Trigger Inputs
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• tpd = 5.1 ns Max at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model A114-B, Class II
– 1000-V Charged-Device Model C101
电源电压DC 3.30 V, 3.60 V max
针脚数 5
位数 1
传送延迟时间 5.10 ns, 5.70 ns, 6.20 ns, 7.70 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

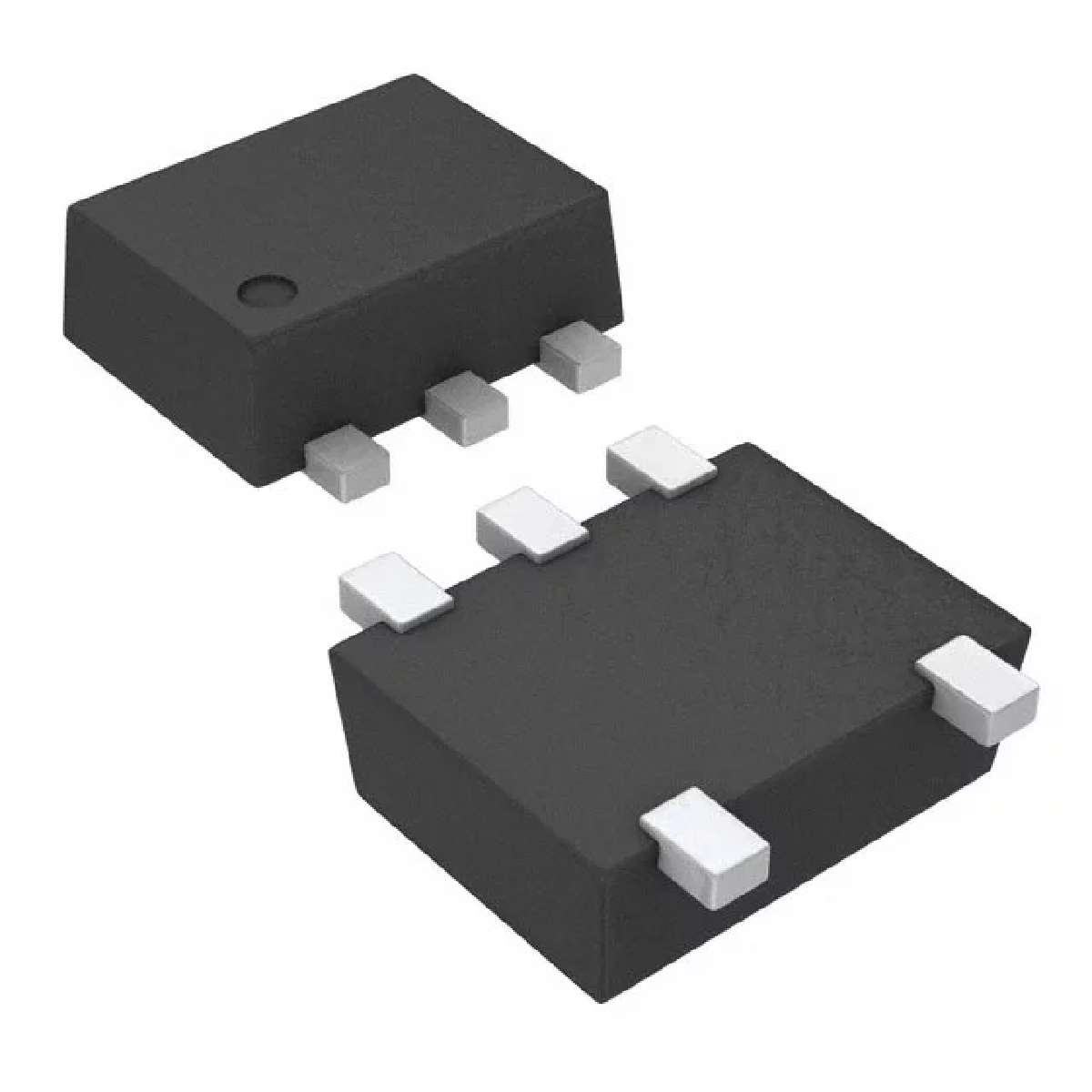

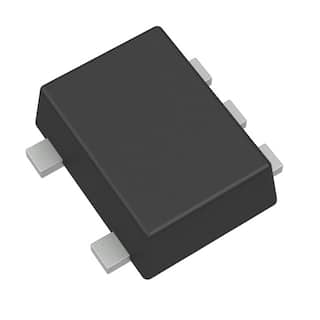

封装 SOT-553-5
封装 SOT-553-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP1G17DRLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP1G17DRYR 德州仪器 | 类似代替 | SN74AUP1G17DRLR和SN74AUP1G17DRYR的区别 |
SN74AUP1G17DRLRG4 德州仪器 | 类似代替 | SN74AUP1G17DRLR和SN74AUP1G17DRLRG4的区别 |
74AUP1G17GM,115 安世 | 功能相似 | SN74AUP1G17DRLR和74AUP1G17GM,115的区别 |
