SN74LV125ANE4

具有三态输出翻两番总线缓冲器GATES QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS

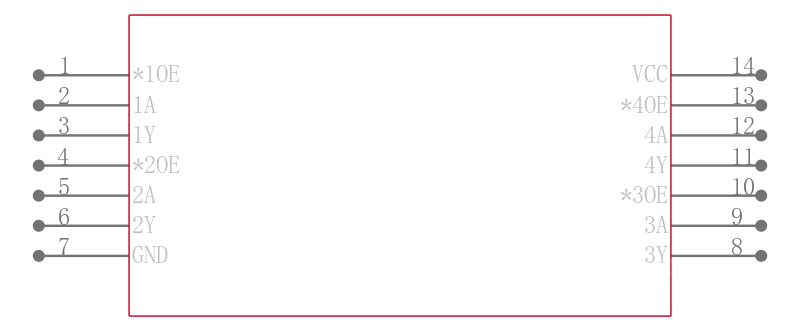

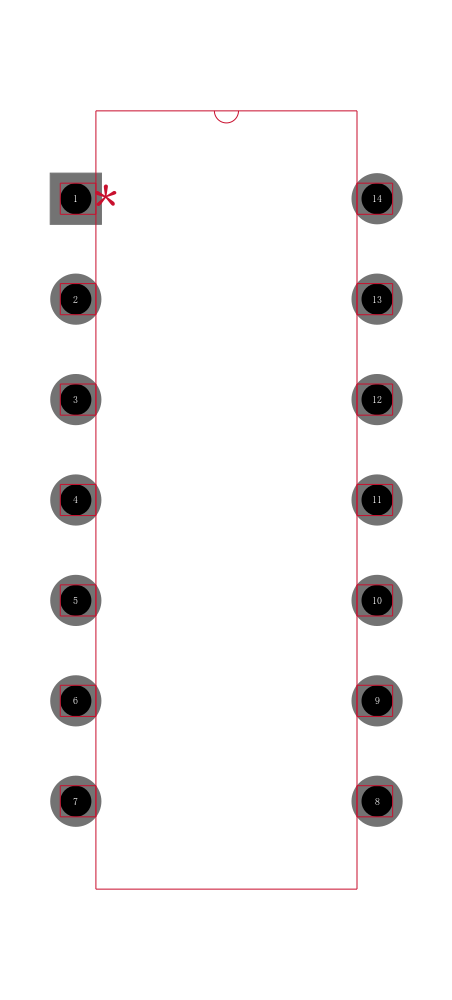

The SN74LV125A quadruple bus buffer gate is designed for 2-V to 5.5-V VCC operation.

Features

• 2-V to 5.5-V VCC Operation

• Max tpd of 6 ns at 5 V

• Typical VOLP Output Ground Bounce

< 0.8 V at VCC= 3.3 V, TA= 25°C

• Typical VOHVOutput VOH Undershoot

> 2.3 V at VCC = 3.3 V, TA = 25°C

• Support Mixed-Mode Voltage Operation on All Ports

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

– 4000-V Human-Body Model

– 200-V Machine Model

– 2000-V Charged-Device Model
