双上升沿触发D型触发器 DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOPS
Description
These dual positive-edge-triggered D-type flip-flops are designed for 2-V to 5.5-V VCC operation.
Features
• 2-V to 5.5-V VCC Operation
• Maximum tpd of 8.5 ns at 5 V
• Typical VOLP Output Ground Bounce
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV Output VOH Undershoot
> 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 500-V Charged-Device Model C101
Applications
• Programmable Logic Controller PLC
• DCS and PAC: Analog Input Module
• AV Receiver
• Server PSU
• STB, DVR, and Streaming Media Withdraw
• Server Motherboard
频率 110 MHz
输出接口数 1
输出电流 12 mA
时钟频率 140 MHz
位数 2
电压波节 5.00 V, 3.30 V, 2.50 V
输入电容 2 pF
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount

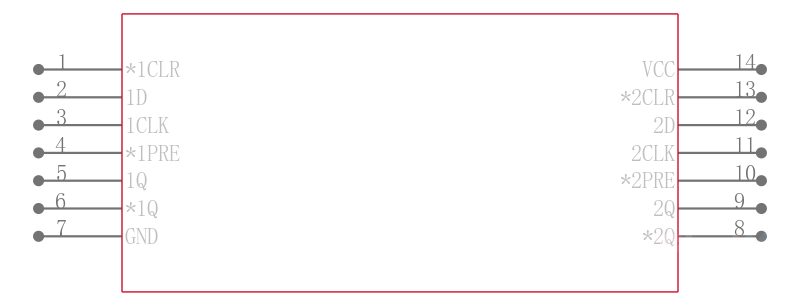

引脚数 14
封装 SOP-14
封装 SOP-14
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LV74ANSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV74ANSRG4 德州仪器 | 类似代替 | SN74LV74ANSR和SN74LV74ANSRG4的区别 |
MC74LVX74DR2G 安森美 | 功能相似 | SN74LV74ANSR和MC74LVX74DR2G的区别 |
MC74LVX74DR2 安森美 | 功能相似 | SN74LV74ANSR和MC74LVX74DR2的区别 |
