SN74AHC125PWE4

具有三态输出翻两番总线缓冲器GATES QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS

DESCRIPON

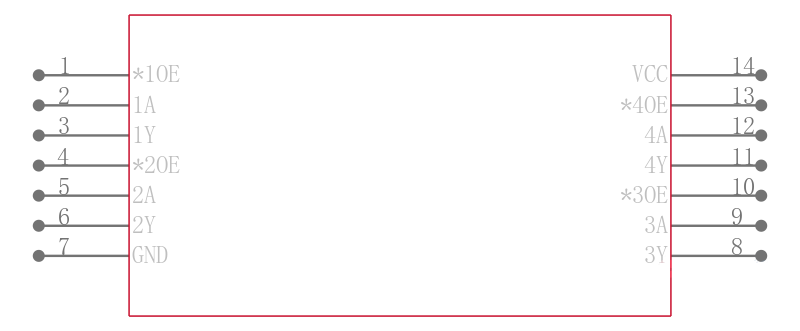

The ’AHC125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable OE input is high. When OE is low, the respective gate passes the data from the A input to its Y output.

Operating Range 2-V to 5.5-V VCC

Latch-Up Performance Exceeds 250 mA Per JESD 17

艾睿:

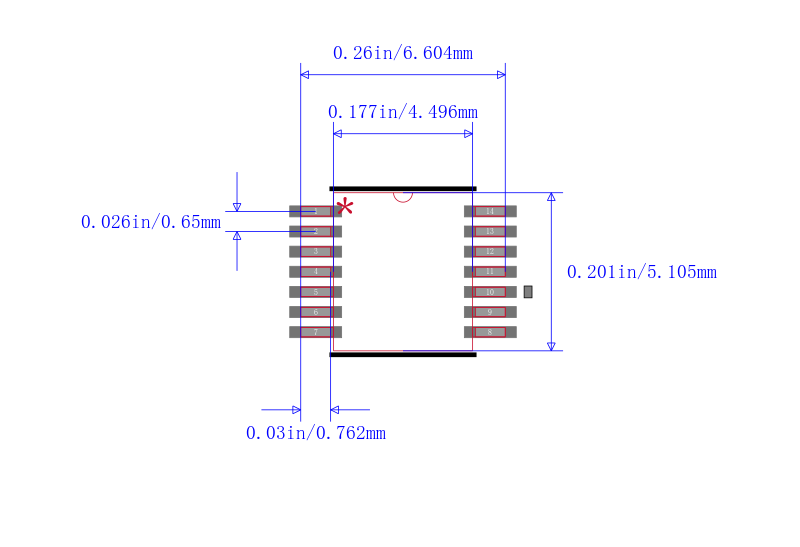

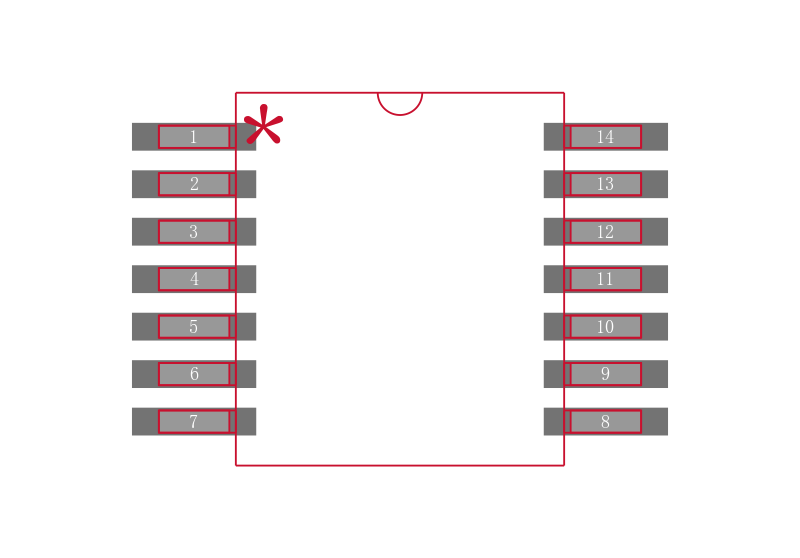

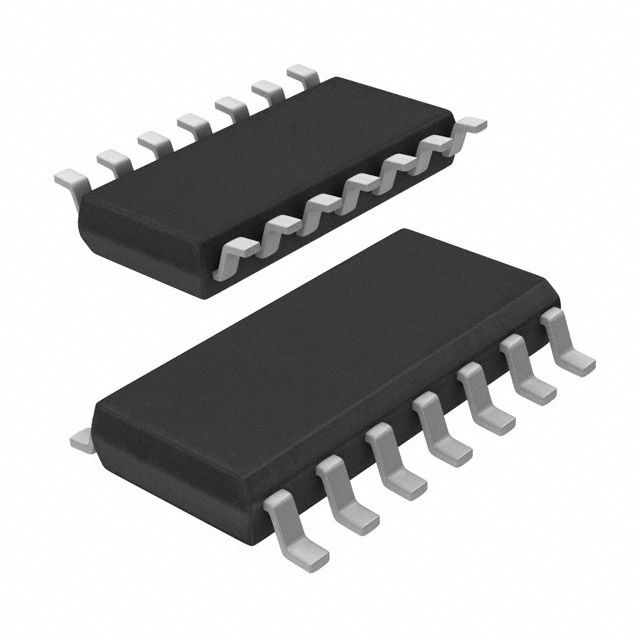

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP Tube

安富利:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP Tube

Chip1Stop:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP Tube

Verical:
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP Tube
