D触发器
If you are looking for a simple device that can store state information, look no further than Texas Instruments" flip flop device. It has a single-ended output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V. It has 1 channels per chip.
频率 275 MHz
电源电压DC 2.70 V, 2.70 V max
输出接口数 1
输出电流 9.00 mA
电路数 1
时钟频率 275 MHz
位数 1
传送延迟时间 1.30 ns, 1.80 ns
极性 Non-Inverting
逻辑门个数 1
输入电容 2.5 pF
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

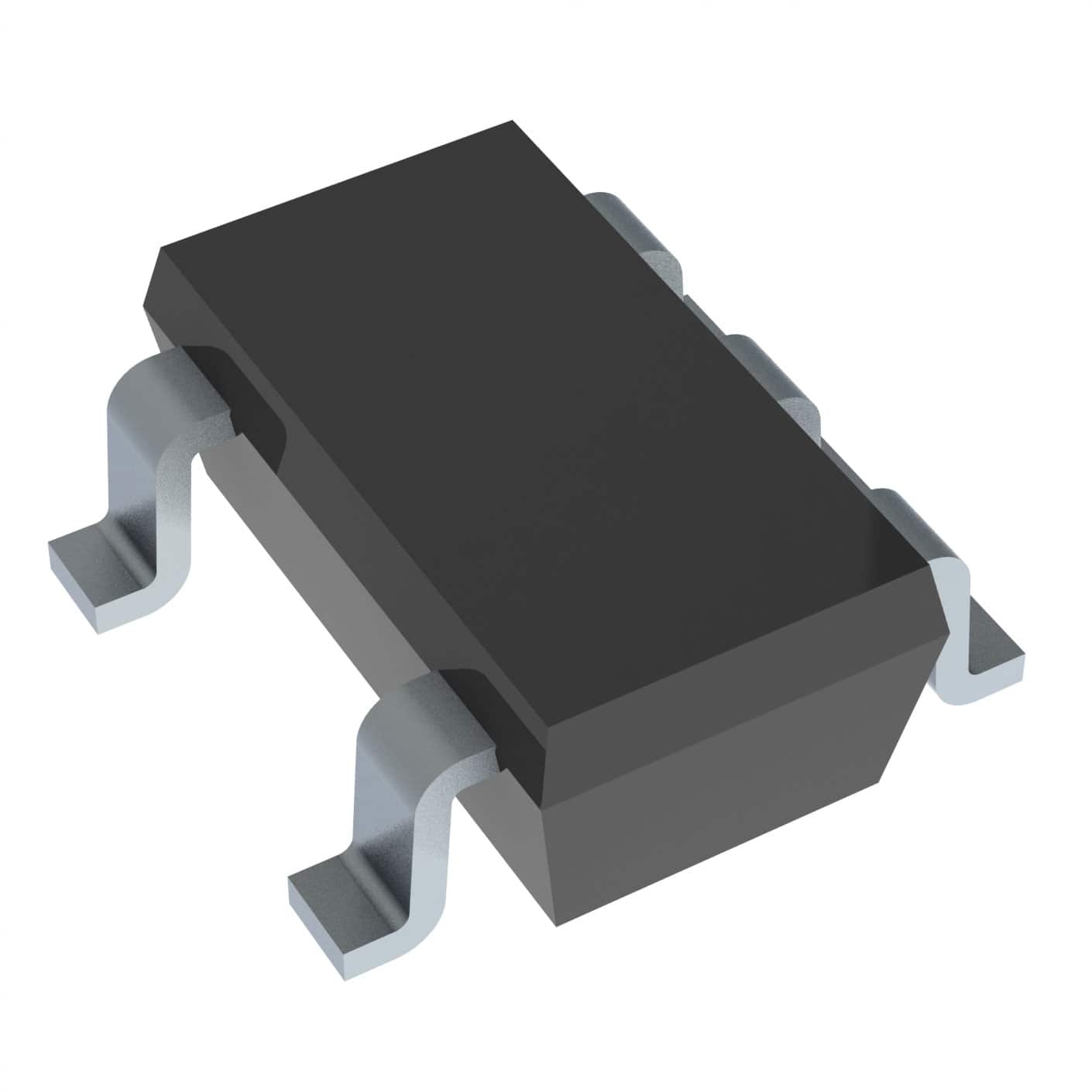

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AUC1G79DBVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP1G80DBVR 德州仪器 | 类似代替 | SN74AUC1G79DBVR和SN74AUP1G80DBVR的区别 |
SN74AUP1G79DBVR 德州仪器 | 类似代替 | SN74AUC1G79DBVR和SN74AUP1G79DBVR的区别 |
SN74AUP1G74DCUR 德州仪器 | 功能相似 | SN74AUC1G79DBVR和SN74AUP1G74DCUR的区别 |
