TEXAS INSTRUMENTS SN74AUP1G80DBVR 触发器, 正沿, D, 6.4 ns, 260 MHz, SOT-23, 5 引脚
Thanks to Texas Instruments and their flip flop device, you can ensure that your state information is saved and available for later use. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V. It has 1 channels per chip.
频率 260 MHz
电源电压DC 800mV ~ 3.60V
输出接口数 1
电路数 1
针脚数 5
时钟频率 257 MHz
位数 1
传送延迟时间 6.40 ns
极性 Inverting
静态电流 500 nA
输入电容 1.5 pF
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

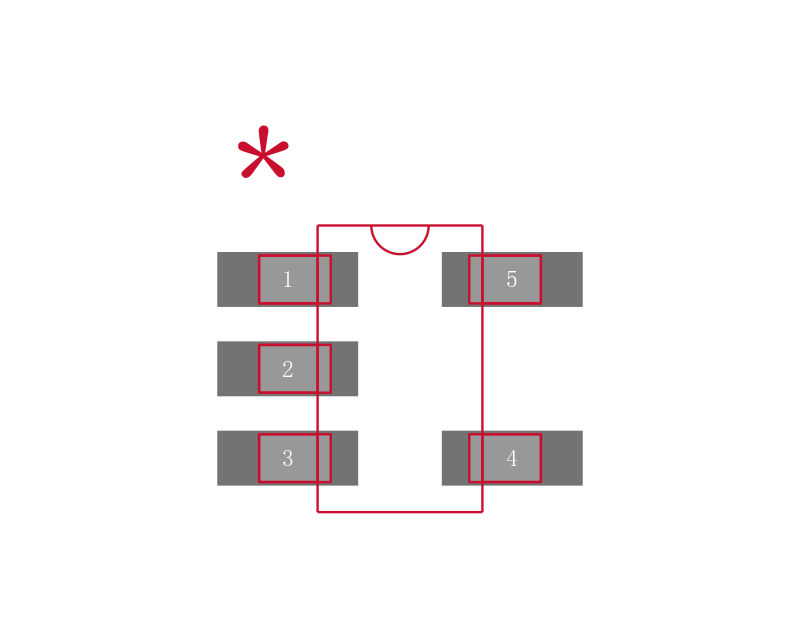

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AUP1G80DBVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP1G80DCKRG4 德州仪器 | 完全替代 | SN74AUP1G80DBVR和SN74AUP1G80DCKRG4的区别 |
SN74AUP1G80DBVRG4 德州仪器 | 完全替代 | SN74AUP1G80DBVR和SN74AUP1G80DBVRG4的区别 |
SN74AUP1G80DCKR 德州仪器 | 类似代替 | SN74AUP1G80DBVR和SN74AUP1G80DCKR的区别 |
