具有三态输出单总线缓冲器门 SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT
This bus buffer gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
The SN74AUC1G126 is a single line driver with a 3-state output. The output is disabled when the output-enable OE input is low.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
电源电压DC 2.70 V
输出接口数 1
通道数 1
位数 1
传送延迟时间 1.70 ns
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

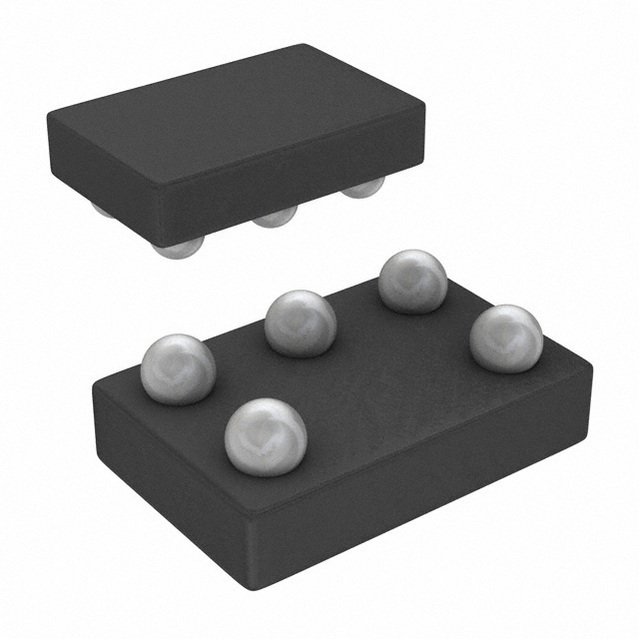

封装 DSBGA-5
长度 1.4 mm
宽度 0.9 mm
高度 0.3 mm
封装 DSBGA-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUC1G126YZPR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUC1G126YEPR 德州仪器 | 完全替代 | SN74AUC1G126YZPR和SN74AUC1G126YEPR的区别 |
74AUC1G126DBVRG4 德州仪器 | 完全替代 | SN74AUC1G126YZPR和74AUC1G126DBVRG4的区别 |
SN74AUC1G125YZPR 德州仪器 | 类似代替 | SN74AUC1G126YZPR和SN74AUC1G125YZPR的区别 |
