HEX反相缓冲器及其与线路驱动器三态输出 HEX INVERTING BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 6 channels per chip. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V ~ 6.00V
输出接口数 6
电路数 2
通道数 6
位数 6
传送延迟时间 20.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 6
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V

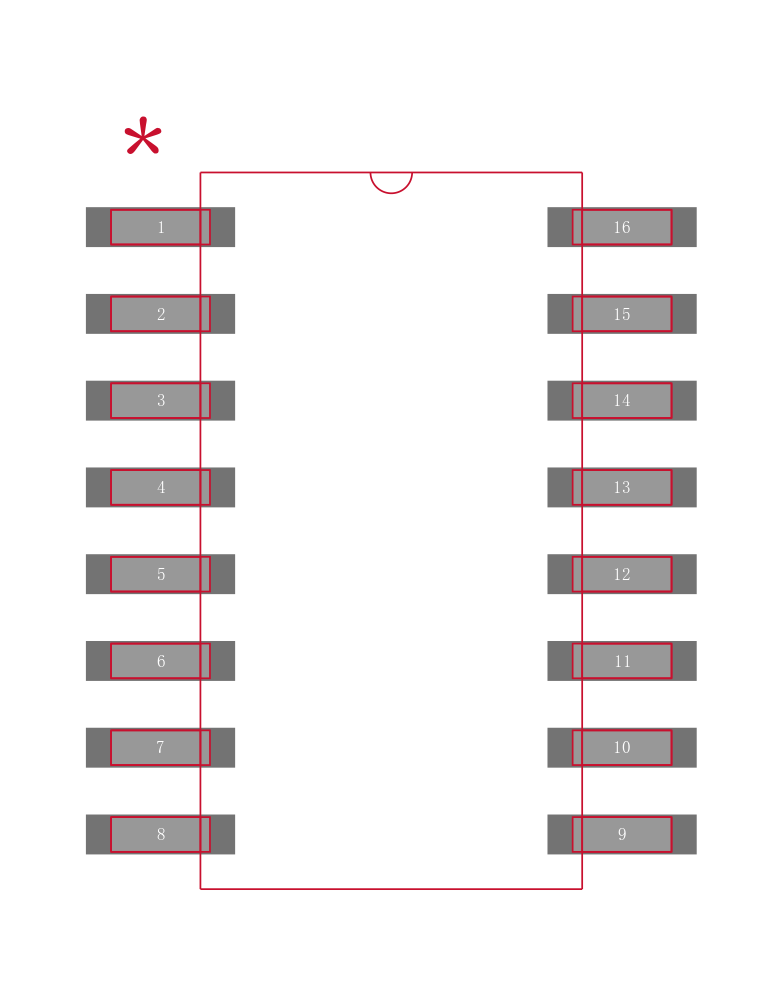

安装方式 Surface Mount

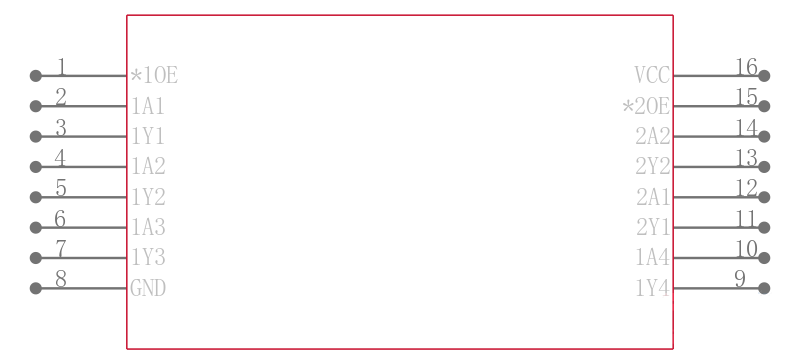

引脚数 16

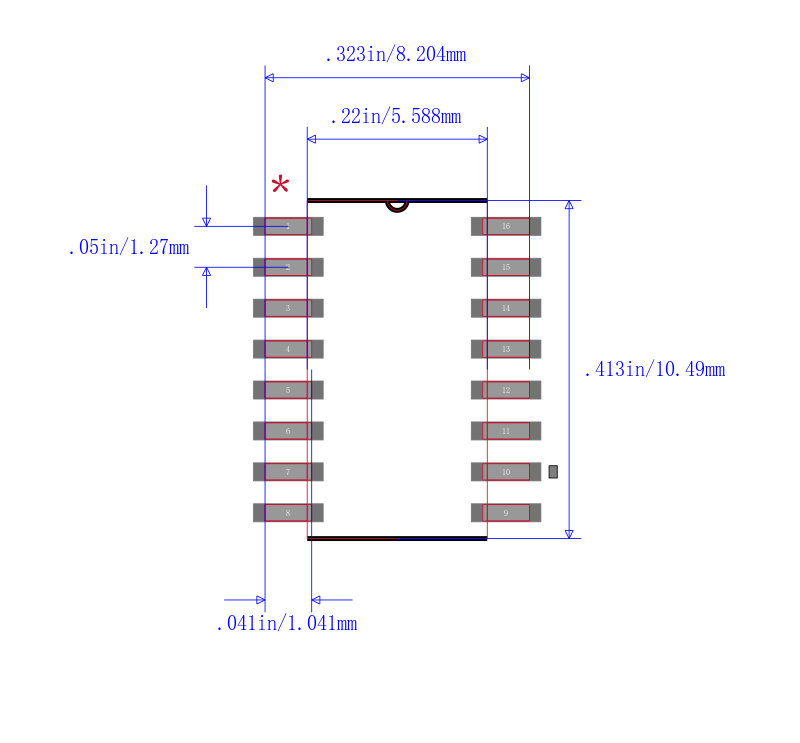

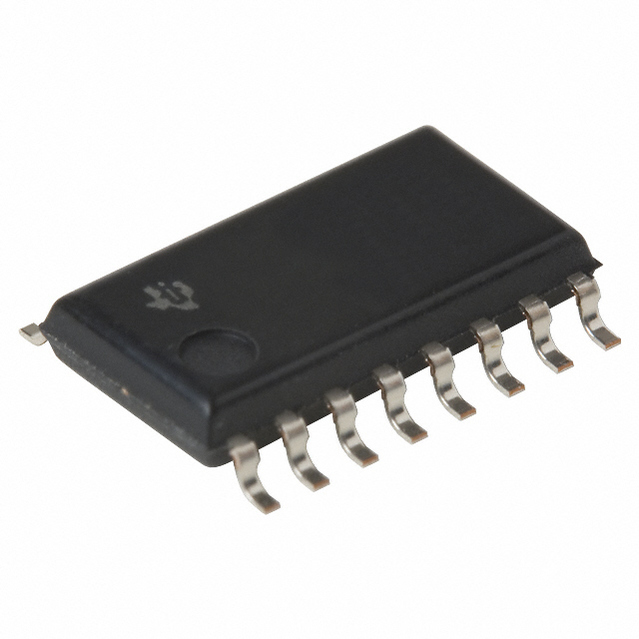

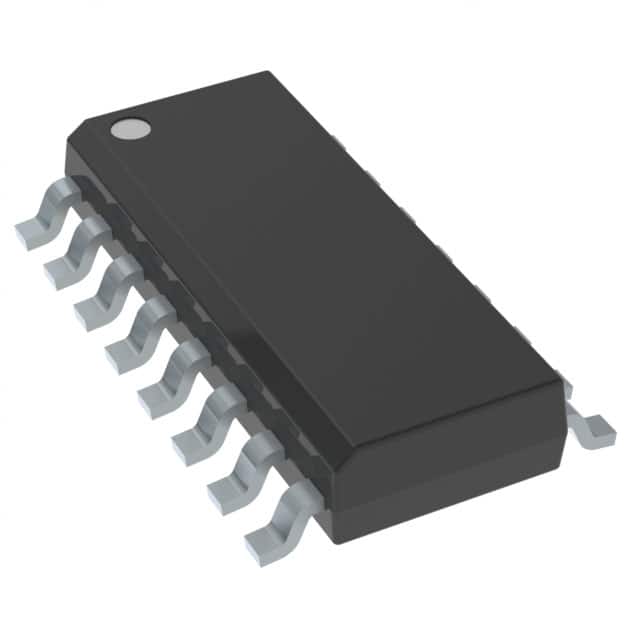

封装 SOP-16
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HC368NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC368NSRE4 德州仪器 | 类似代替 | SN74HC368NSR和SN74HC368NSRE4的区别 |
SN74HC368NSRG4 德州仪器 | 类似代替 | SN74HC368NSR和SN74HC368NSRG4的区别 |
