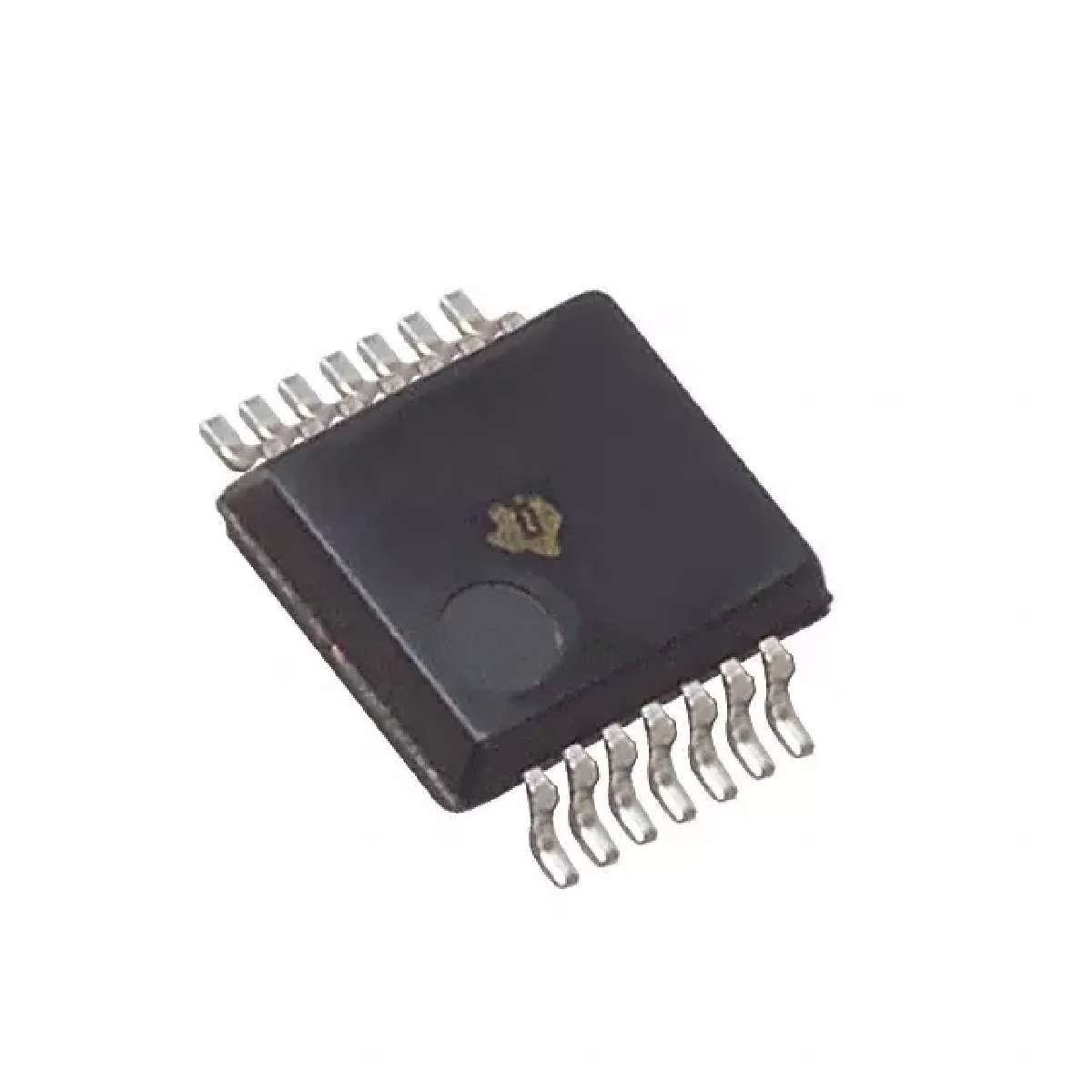

SN74LVTH125DBR概述

3.3 -V ABT翻两番总线缓冲器,三态输出 3.3-V ABT QUADRUPLE BUS BUFFERS WITH 3-STATE OUTPUTS

The is a quadruple Bus Buffer designed specifically for low-voltage 3.3V VCC operation, but with the capability to provide a TTL interface to a 5V system environment. It features independent line drivers with 3-state outputs. Each output is in the high-impedance state when the associated output-enable OE\ input is high. Active bus-hold circuitry holds unused or un-driven inputs at a valid logic state. Use of pull-up/pull-down resistors with the bus-hold circuitry is not recommended. When VCC is between 0 and 1.5V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5V, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

.
Supports mixed-mode signal operation
.
IOFF and power-up 3-state support hot insertion
.
Bus hold on data inputs eliminates the need for external pull-up/pull-down resistors
.
Latch-up performance exceeds 500mA per JESD 17
.
<0.8V at VCC = 3.3V, TA = 25°C VOLP output ground bounce
.
Green product and no Sb/Br
SN74LVTH125DBR中文资料参数规格
技术参数

电源电压DC 2.70V ~ 3.60V

输出接口数 4

通道数 4

针脚数 14

位数 4

电压波节 3.30 V, 2.70 V

静态电流 7 mA

逻辑门个数 4

输出电流驱动 -500 µA

输入数 4

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 14

封装 SSOP-14

外形尺寸

封装 SSOP-14

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

SN74LVTH125DBR引脚图与封装图
SN74LVTH125DBR引脚图
SN74LVTH125DBR封装图

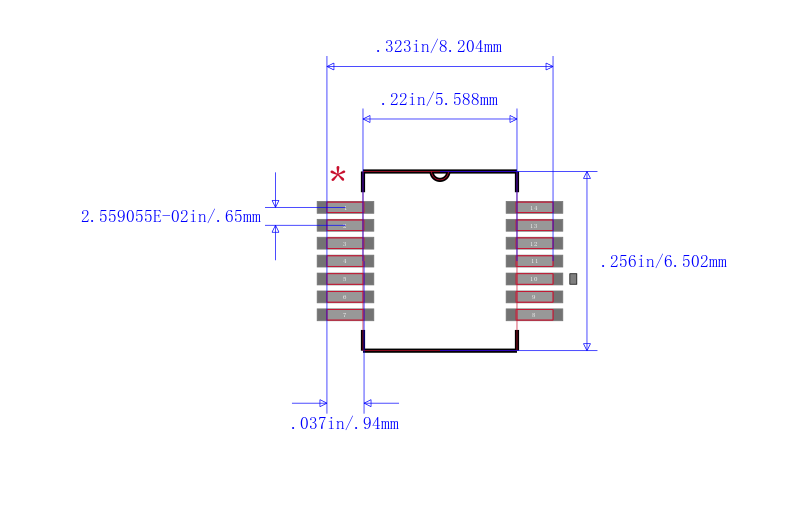

SN74LVTH125DBR封装焊盘图
在线购买SN74LVTH125DBR
型号: SN74LVTH125DBR
制造商: TI 德州仪器
描述:3.3 -V ABT翻两番总线缓冲器,三态输出 3.3-V ABT QUADRUPLE BUS BUFFERS WITH 3-STATE OUTPUTS
替代型号SN74LVTH125DBR
型号/品牌 代替类型 替代型号对比

SN74LVTH125DBR

TI 德州仪器

当前型号

当前型号

SN74LVTH125PW

德州仪器

完全替代

SN74LVTH125DBR和SN74LVTH125PW的区别

SN74LVTH125NSR

德州仪器

完全替代

SN74LVTH125DBR和SN74LVTH125NSR的区别

SN74LVT125DRG4

德州仪器

完全替代

SN74LVTH125DBR和SN74LVT125DRG4的区别
