HEX缓冲器和线路驱动器,具有三态输出 HEX BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
缓冲器,非反向 2 元件 2,4(六角形) 位每元件 三态 Output 16-SOIC
得捷:
IC BUF NON-INVERT 5.5V 16SOIC
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74AHC367D buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. It has 6 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 6-CH Non-Inverting 3-ST CMOS 16-Pin SOIC Tube
Verical:
Buffer/Line Driver 6-CH Non-Inverting 3-ST CMOS 16-Pin SOIC Tube
Win Source:
IC BUF NON-INVERT 5.5V 16SOIC / Buffer, Non-Inverting 2 Element 2, 4 Hex Bit per Element 3-State Output 16-SOIC
电源电压DC 2.00V ~ 5.50V
输出接口数 6
通道数 6
位数 6
传送延迟时间 7.00 ns
电压波节 5.00 V, 3.30 V
输出电流驱动 -1.00 mA
输入数 6
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 16

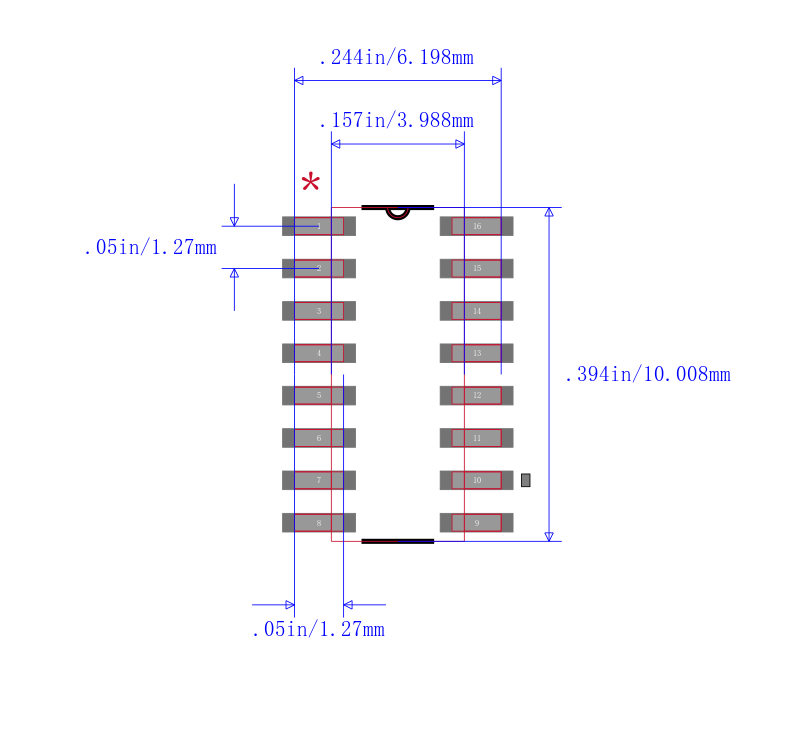

封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHC367D TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC367N 德州仪器 | 完全替代 | SN74AHC367D和SN74AHC367N的区别 |
SN74AHC367PWR 德州仪器 | 完全替代 | SN74AHC367D和SN74AHC367PWR的区别 |
SN74AHC367DR 德州仪器 | 完全替代 | SN74AHC367D和SN74AHC367DR的区别 |
