八路缓冲器/驱动器,具有三态输出 OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS
DESCRIPON/ORDERING INFORMATION
This octal buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVC240A is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
FEATURES
• Operates From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Max tpd of 6.5 ns at 3.3 V
• Typical VOLPOutput Ground Bounce <0.8 V at VCC = 3.3 V, TA= 25°C
• Typical VOHVOutput VOH Undershoot >2 V at VCC = 3.3 V, TA= 25°C
• Supports Mixed-Mode Signal Operation on All Ports 5-V Input/Output Voltage With 3.3-V VCC
• Ioff Supports Partial-Power-Down-Mode Operation
电源电压DC 2.00V ~ 3.60V
工作电压 1.65V ~ 3.6V
输出接口数 8
通道数 8
位数 8
传送延迟时间 7.50 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount
引脚数 20

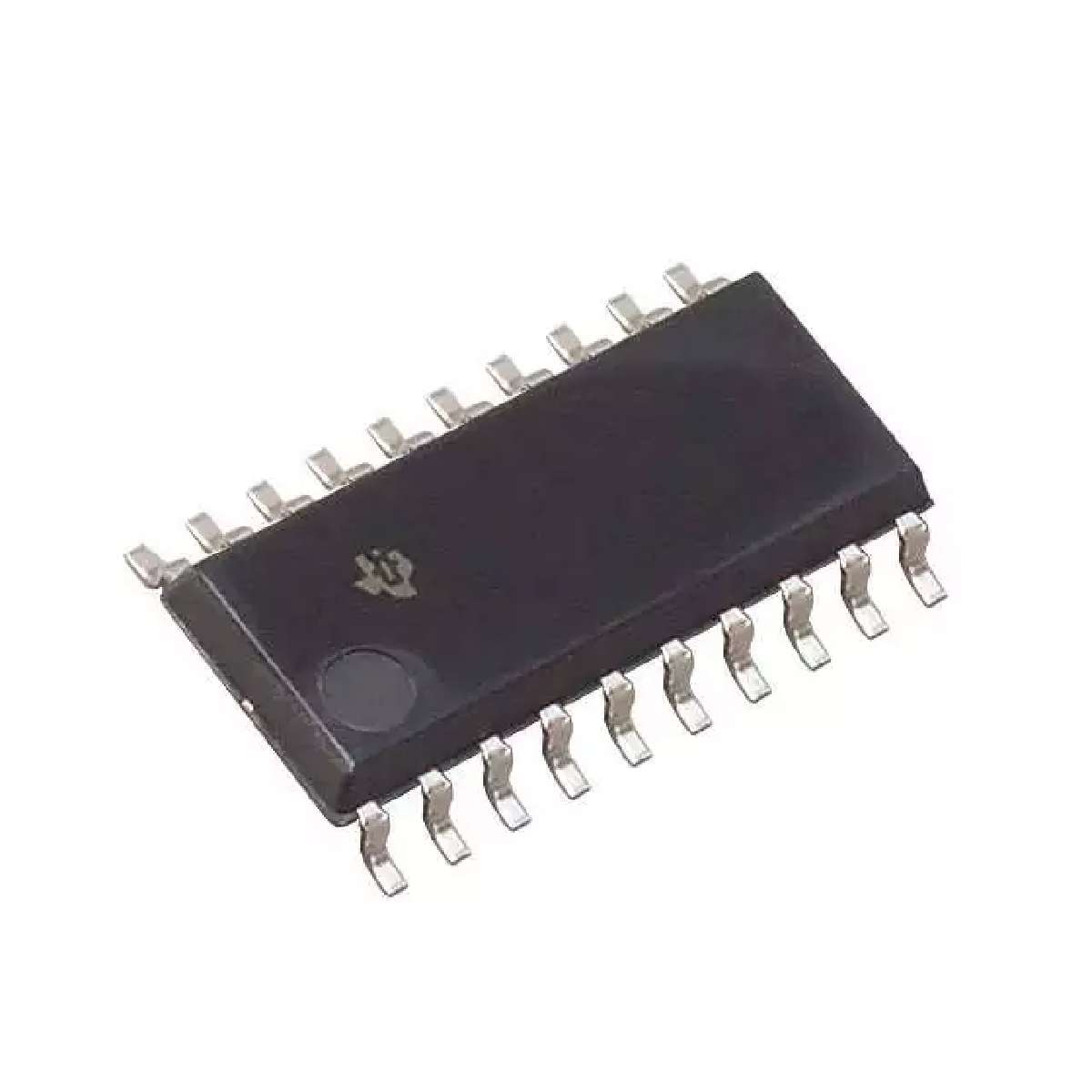

封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC240ANSRG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC240ANSR 德州仪器 | 完全替代 | SN74LVC240ANSRG4和SN74LVC240ANSR的区别 |
SN74LVCZ240ANSR 德州仪器 | 类似代替 | SN74LVC240ANSRG4和SN74LVCZ240ANSR的区别 |
SN74LVC240ANSRE4 德州仪器 | 类似代替 | SN74LVC240ANSRG4和SN74LVC240ANSRE4的区别 |
