八路缓冲器/驱动器,具有三态输出 OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS
The is an octal Buffer/Driver with 3-state outputs and is designed for 1.65 to 3.6V VCC operation. This device is organized as two 4-bit line drivers with separate output-enable OE inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. The outputs, which are designed to sink up to 12mA, include equivalent 26R resistors to reduce overshoot and undershoot.
电源电压DC 2.00V ~ 3.60V
输出接口数 8
输出电流 12.0 mA
通道数 8
针脚数 20
位数 8
传送延迟时间 7.50 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 20

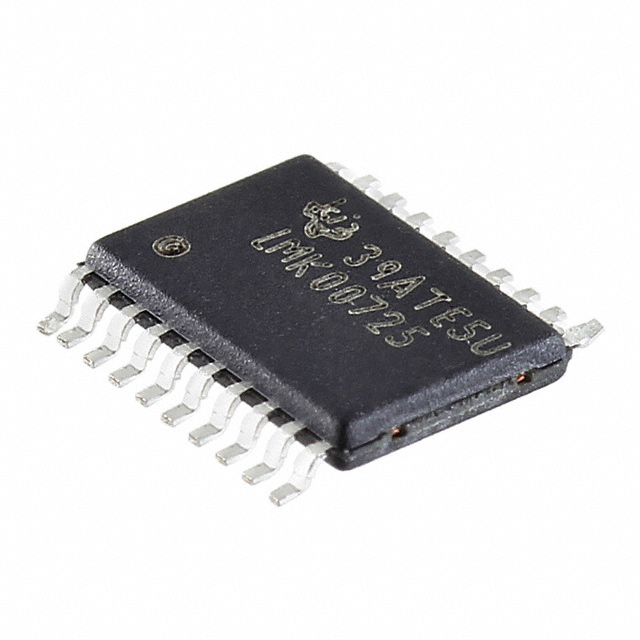

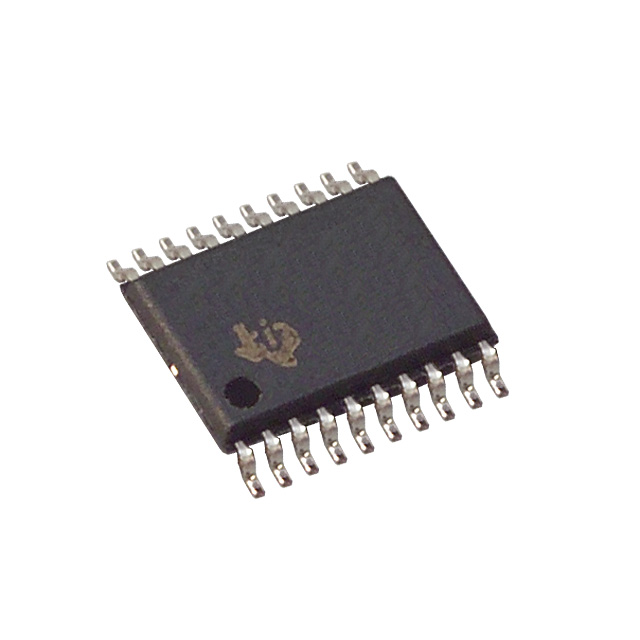

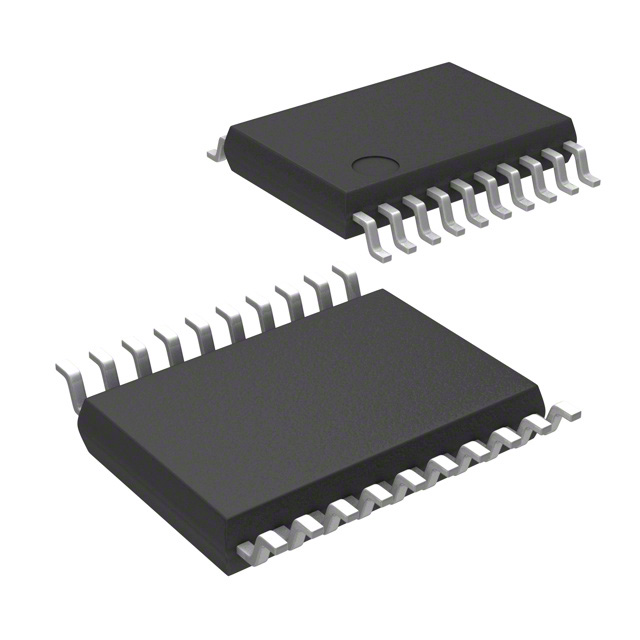

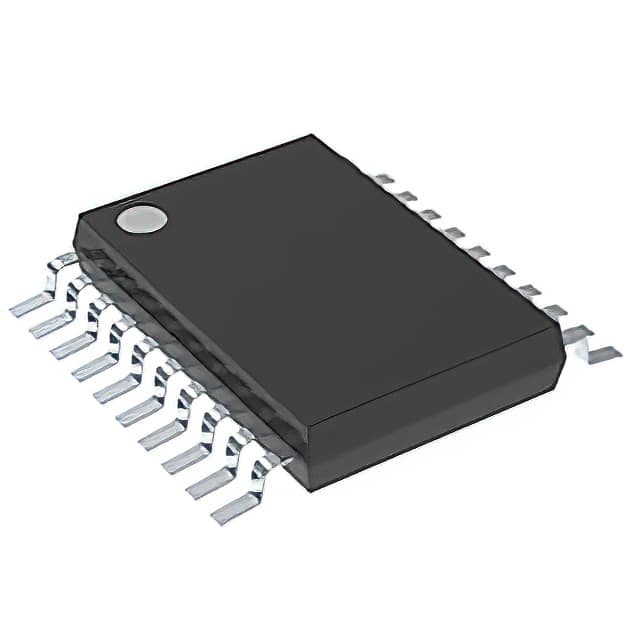

封装 TSSOP-20
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
制造应用 通信与网络, 医用, 测试与测量, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC2244APW TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC2244ADW 德州仪器 | 完全替代 | SN74LVC2244APW和SN74LVC2244ADW的区别 |
SN74LVC2244APWR 德州仪器 | 完全替代 | SN74LVC2244APW和SN74LVC2244APWR的区别 |
SN74LVC2244APWRE4 德州仪器 | 完全替代 | SN74LVC2244APW和SN74LVC2244APWRE4的区别 |
