SN74LV74ARGYRG4

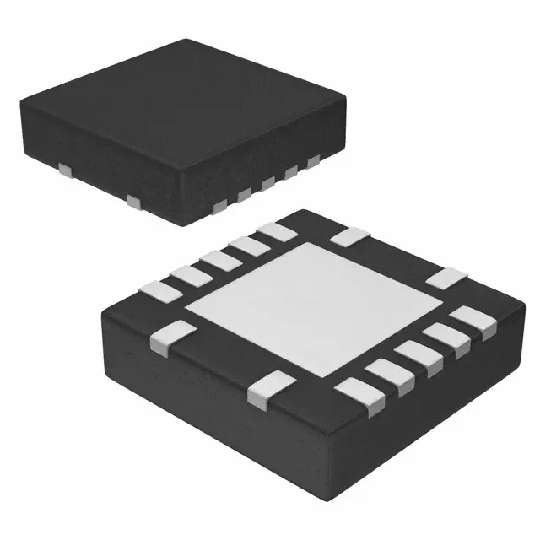

Flip Flop D-Type Pos-Edge 2Element 14Pin VQFN EP T/R

Description

These dual positive-edge-triggered D-type flip-flops are designed for 2-V to 5.5-V VCC operation.

Features

• 2-V to 5.5-V VCC Operation

• Maximum tpd of 8.5 ns at 5 V

• Typical VOLP Output Ground Bounce

  < 0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV Output VOH Undershoot

  > 2.3 V at VCC = 3.3 V, TA = 25°C

• Support Mixed-Mode Voltage Operation on All Ports

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

  – 2000-V Human-Body Model A114-A

  – 500-V Charged-Device Model C101

Applications

• Programmable Logic Controller PLC

• DCS and PAC: Analog Input Module

• AV Receiver

• Server PSU

• STB, DVR, and Streaming Media Withdraw

• Server Motherboard
