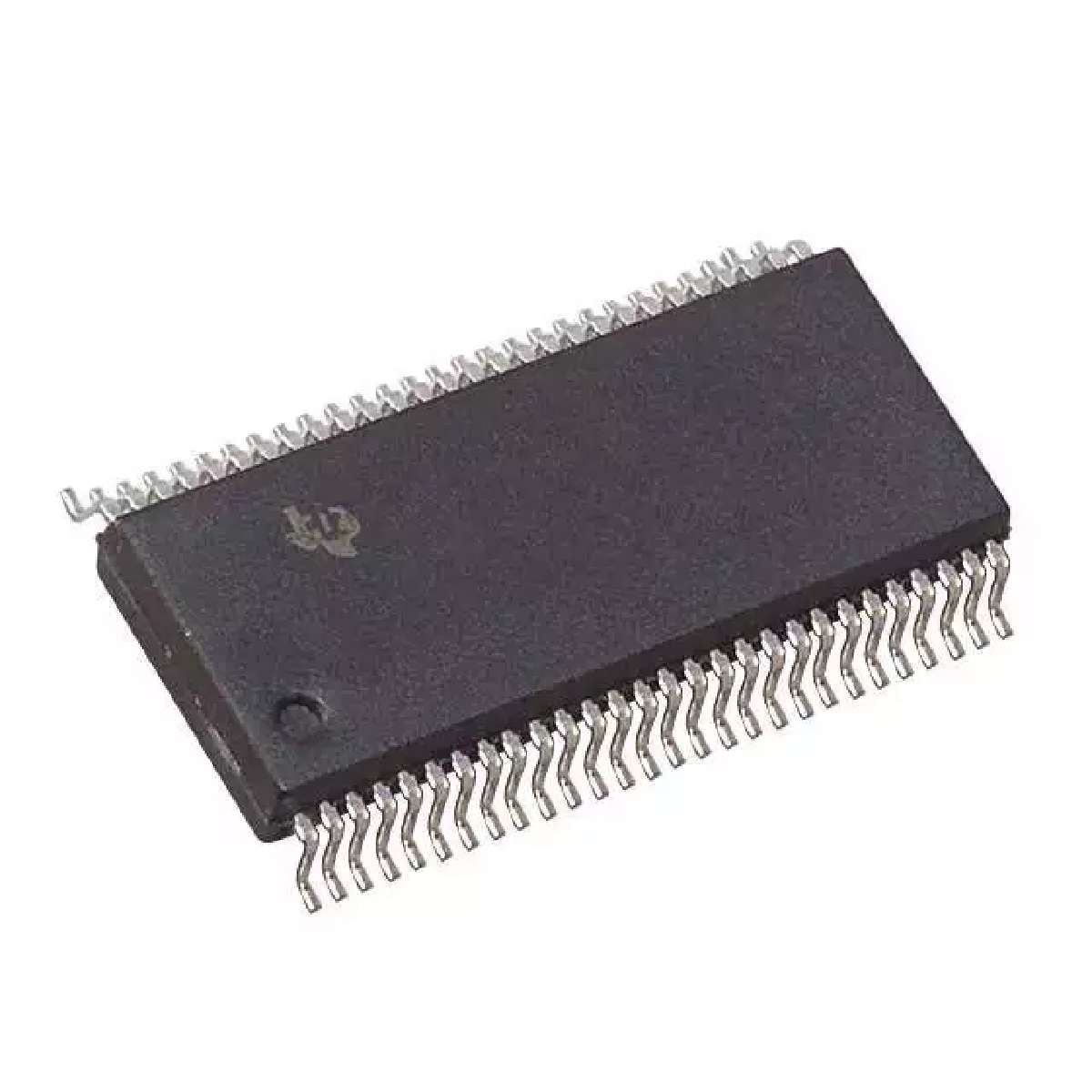

18位总线接口D类锁存器具有三态输出 18-BIT BUS-INTERFACE D-TYPE LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 18 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 18
输出电流 64.0 mA
电路数 18
通道数 18
位数 18
传送延迟时间 4.80 ns
电压波节 5.00 V
静态电流 85 mA
输出电流驱动 -500 µA
输入数 18
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 56
封装 SSOP-56
长度 18.41 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT16843DL TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT16843DLG4 德州仪器 | 完全替代 | SN74ABT16843DL和SN74ABT16843DLG4的区别 |
SN74ABT16843DLR 德州仪器 | 类似代替 | SN74ABT16843DL和SN74ABT16843DLR的区别 |
SN74ABT16843DLRG4 德州仪器 | 类似代替 | SN74ABT16843DL和SN74ABT16843DLRG4的区别 |
