20位总线接口触发器具有三态输出 20-BIT BUS-INTERFACE FLIP-FLOPS WITH 3-STATE OUTPUTS
Thanks to Texas Instruments and their flip flop device, you can ensure that your state information is saved and available for later use. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. It has 20 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 150 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 10
输出电流 64 mA
电路数 2
时钟频率 150 MHz
位数 20
传送延迟时间 6.10 ns
电压波节 5.00 V
静态电流 89 mA
输入电容 3.5 pF
输出电流驱动 -500 µA
输入数 10
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 56

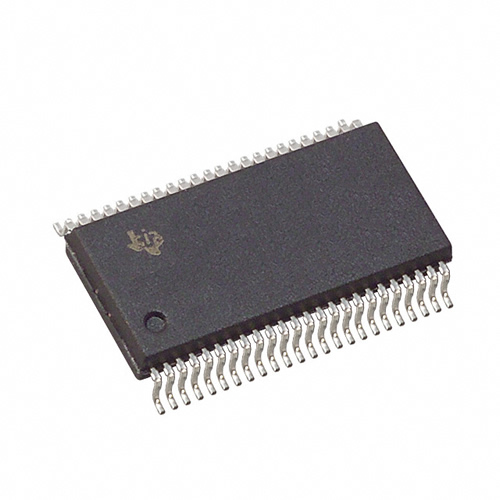

封装 SSOP-56
长度 18.41 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ABT16821DL TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT16821DLR 德州仪器 | 类似代替 | SN74ABT16821DL和SN74ABT16821DLR的区别 |
SN74ABT16821DLRG4 德州仪器 | 类似代替 | SN74ABT16821DL和SN74ABT16821DLRG4的区别 |
SN74ABT16821DLG4 德州仪器 | 类似代替 | SN74ABT16821DL和SN74ABT16821DLG4的区别 |
