八路透明D类锁存器具有三态输出 OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch manufactured by Texas Instruments contains real time information and can be pushed through it once it is enabled. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 10.0 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 64 mA
电路数 8
位数 8
传送延迟时间 9.50 ns
电压波节 5.00 V
输出电流驱动 -234 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole

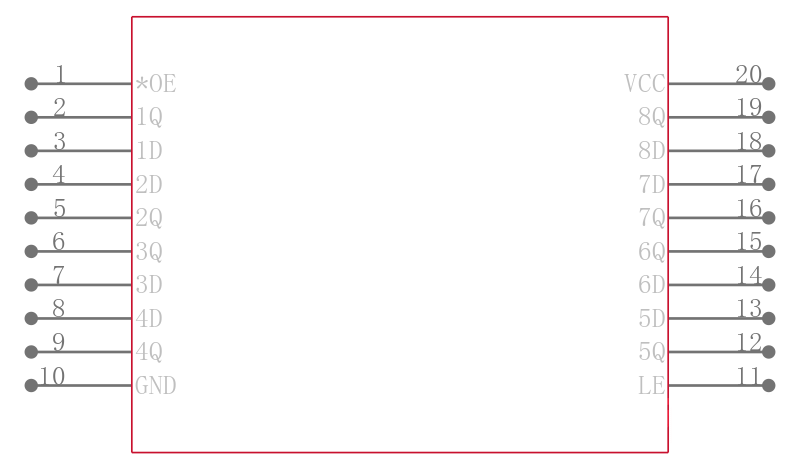

引脚数 20

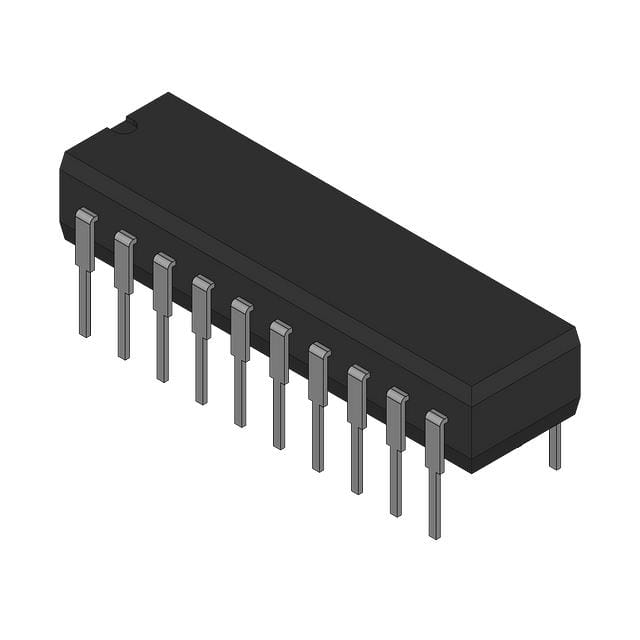

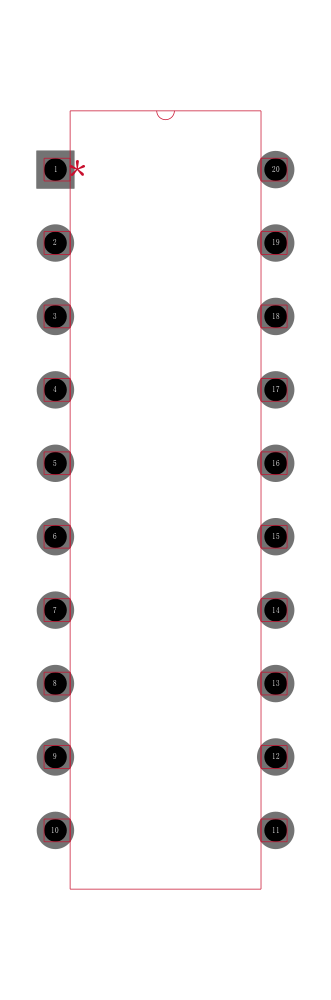

封装 PDIP-20
长度 24.33 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74BCT373N TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT373N 德州仪器 | 类似代替 | SN74BCT373N和SN74ABT373N的区别 |
SN74BCT373NE4 德州仪器 | 类似代替 | SN74BCT373N和SN74BCT373NE4的区别 |
