闭锁 20bit Bus Interface
Texas Instruments" d-type low-level latch is an electronic circuit that can store state information and is used as data storage elements. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 20 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 1.65V ~ 3.60V
输出接口数 20
输出电流 24.0 mA
电路数 2
位数 20
传送延迟时间 3.90 ns
极性 Non-Inverting
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 20
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount

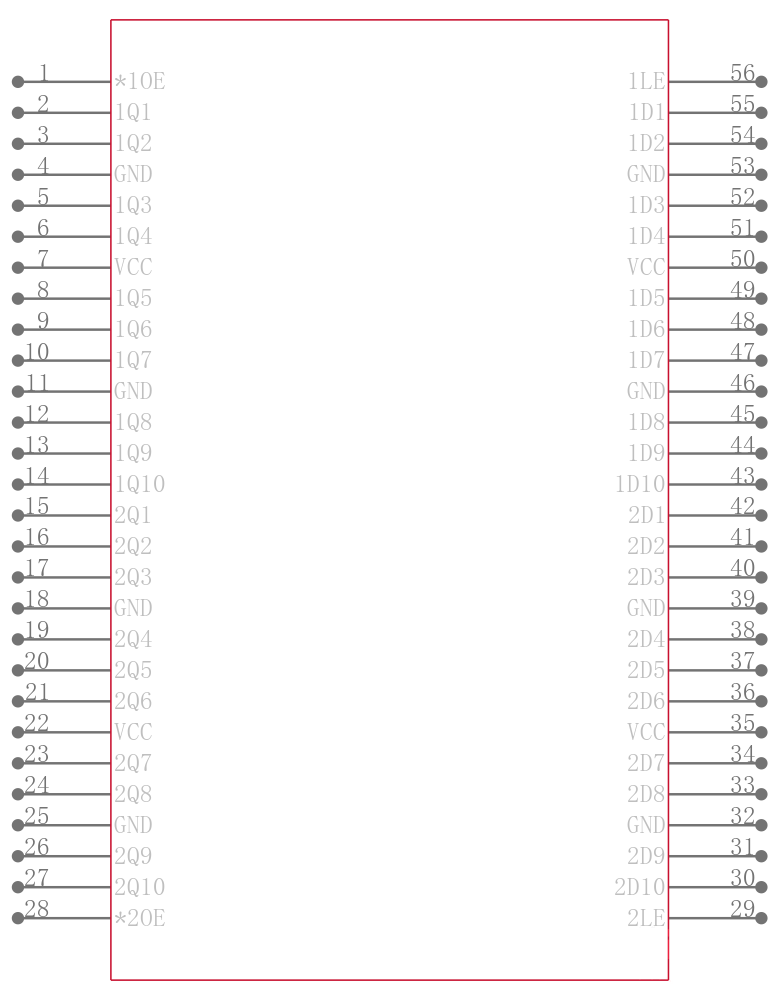

引脚数 56
封装 TSSOP-56
长度 14 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALVCH16841DGGR TI 德州仪器 | 当前型号 | 当前型号 |
74ALVCH16841DGGRE4 德州仪器 | 完全替代 | SN74ALVCH16841DGGR和74ALVCH16841DGGRE4的区别 |
74ALVCH16841DGGRG4 德州仪器 | 完全替代 | SN74ALVCH16841DGGR和74ALVCH16841DGGRG4的区别 |
SN74ALVCH162841GR 德州仪器 | 类似代替 | SN74ALVCH16841DGGR和SN74ALVCH162841GR的区别 |
