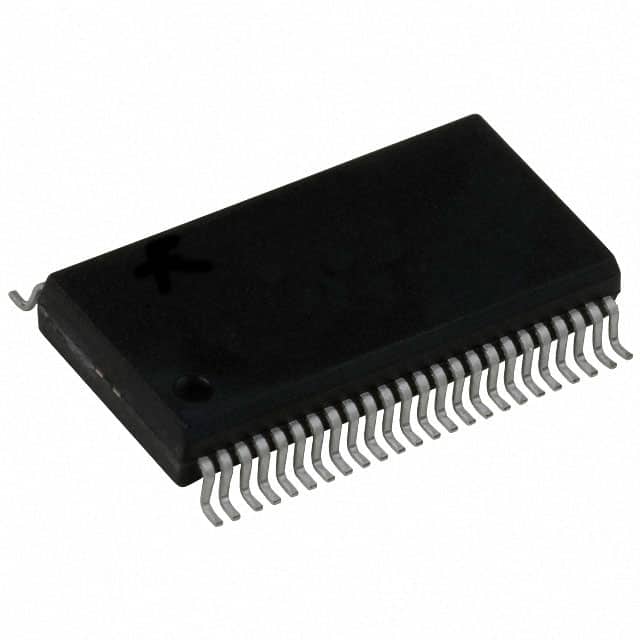

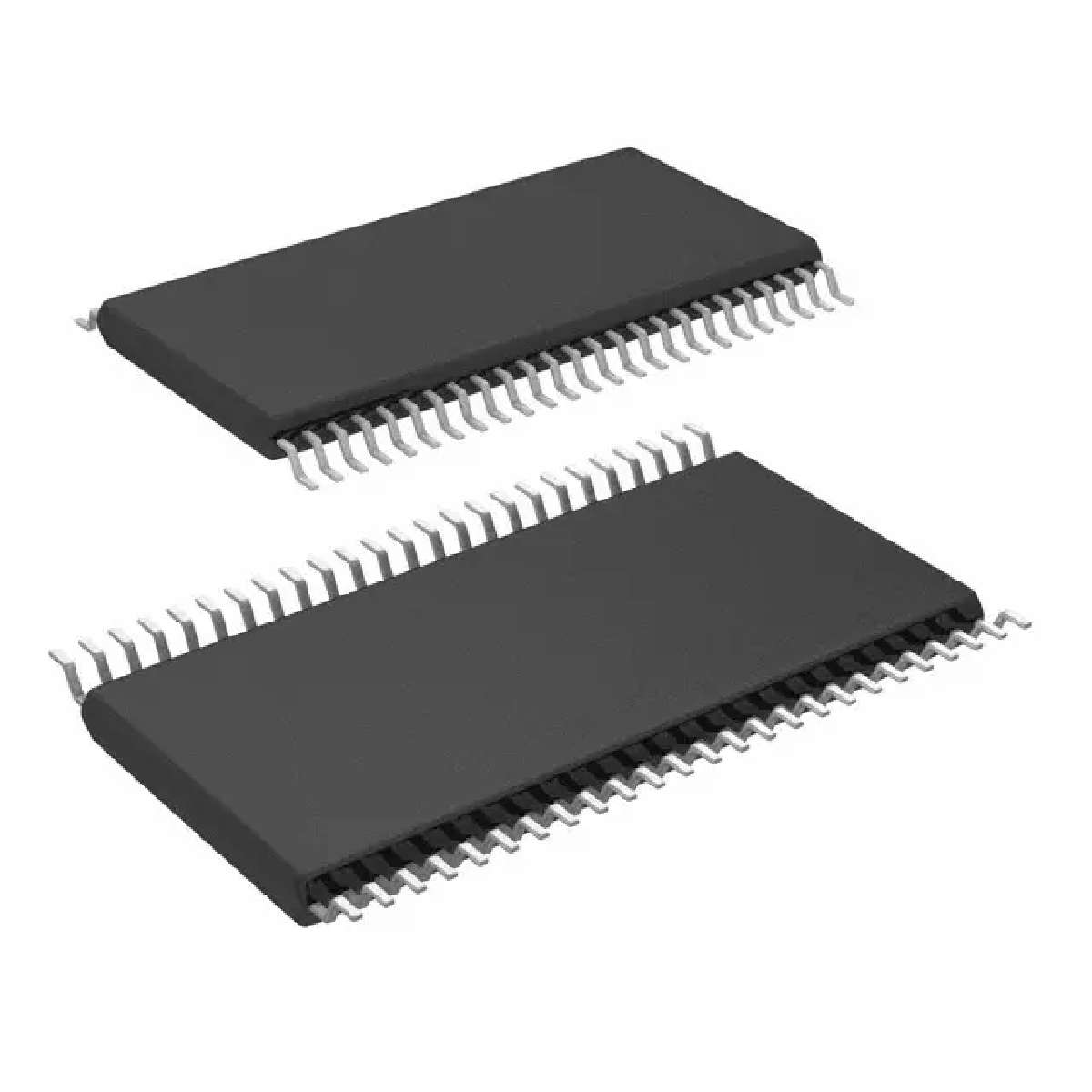

具有三态输出的 16 位透明 D 型锁存器 48-TSSOP -40 to 85
This d-type low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.4 V, while its maximum is 3.6 V. It has 16 channels per chip.
电源电压DC 1.40V ~ 3.60V
输出接口数 16
输出电流 12 mA
位数 16
传送延迟时间 3.20 ns
极性 Non-Inverting
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V, 1.20 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.4V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.4 V
安装方式 Surface Mount
引脚数 48
封装 TSSOP-48
封装 TSSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AVC16373DGGR TI 德州仪器 | 当前型号 | 当前型号 |
74AVC16373DGGRG4 德州仪器 | 完全替代 | SN74AVC16373DGGR和74AVC16373DGGRG4的区别 |
SN74AVC16373DGG 德州仪器 | 完全替代 | SN74AVC16373DGGR和SN74AVC16373DGG的区别 |
SN74AVC16373ZQLR 德州仪器 | 功能相似 | SN74AVC16373DGGR和SN74AVC16373ZQLR的区别 |
