触发器 2.5/3.3V 20bit Univ
Texas Instruments brings you their latest flip flop device, a simple yet effective method for storing your circuit"s state information. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has 20 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 3.6 V.
频率 150 MHz
电源电压DC 3.30 V, 3.60 V max
输出接口数 10
输出电流 64.0 mA
电路数 2
时钟频率 150 MHz
位数 20
极性 Non-Inverting
电压波节 3.30 V, 2.50 V
静态电流 3.2 mA
输入电容 3.5 pF
输入数 10
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 56

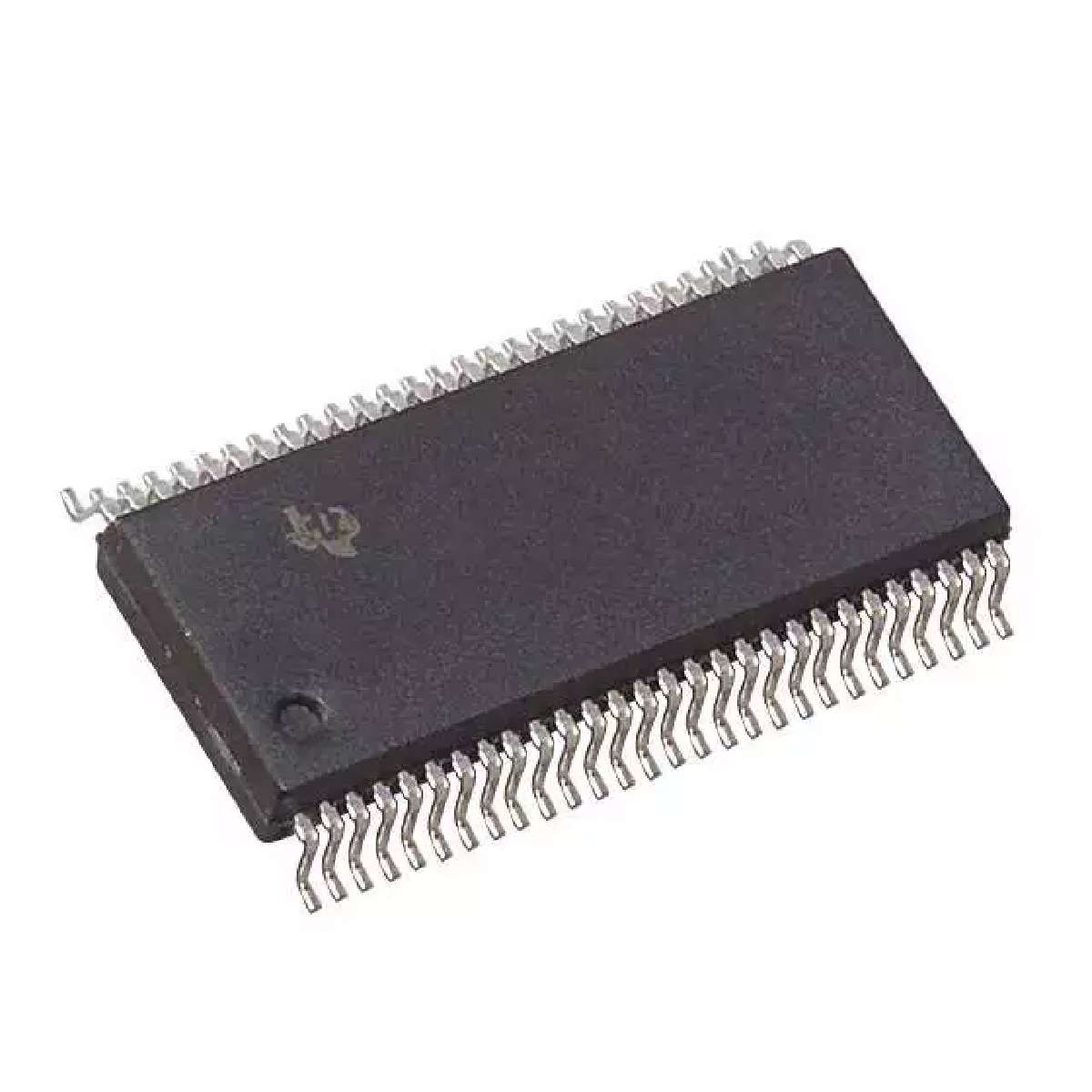

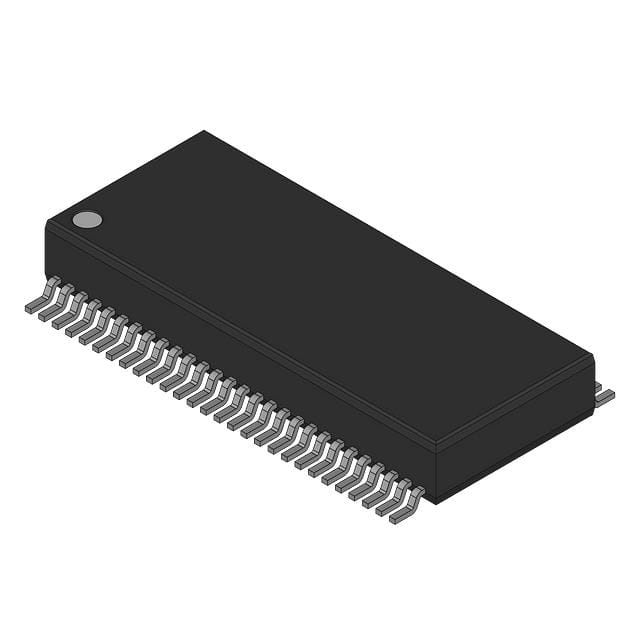

封装 SSOP-56
长度 18.41 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALVTH16821DLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALVTH16821GR 德州仪器 | 完全替代 | SN74ALVTH16821DLR和SN74ALVTH16821GR的区别 |
SN74ALVTH16821VR 德州仪器 | 完全替代 | SN74ALVTH16821DLR和SN74ALVTH16821VR的区别 |
SN74ALVTH16821DL 德州仪器 | 类似代替 | SN74ALVTH16821DLR和SN74ALVTH16821DL的区别 |
