具有三态输出的同步4位计数器 SYNCHRONOUS 4-BIT COUNTERS WITH 3-STATE OUTPUTS
Do you have multiple logical states? Implement this binary counter shift register by Texas Instruments in order to switch and maintain states. With a 3-state output, this is power management at its best. This counter shift register has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V ~ 5.50V
输出接口数 4
时钟频率 30 MHz
位数 4
电压波节 5.00 V
输出电流驱动 -108 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 20

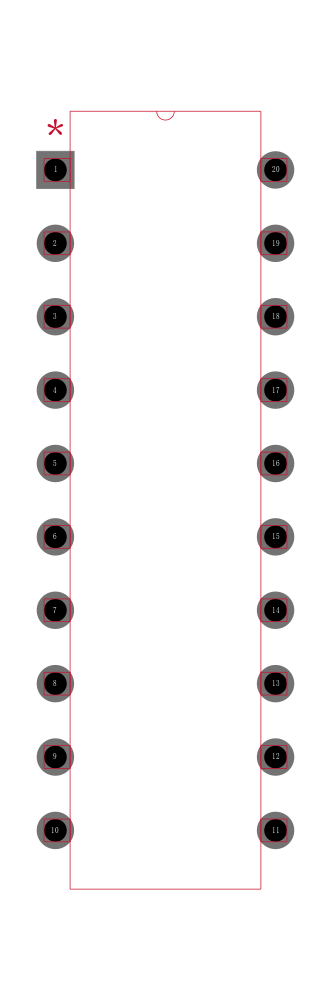

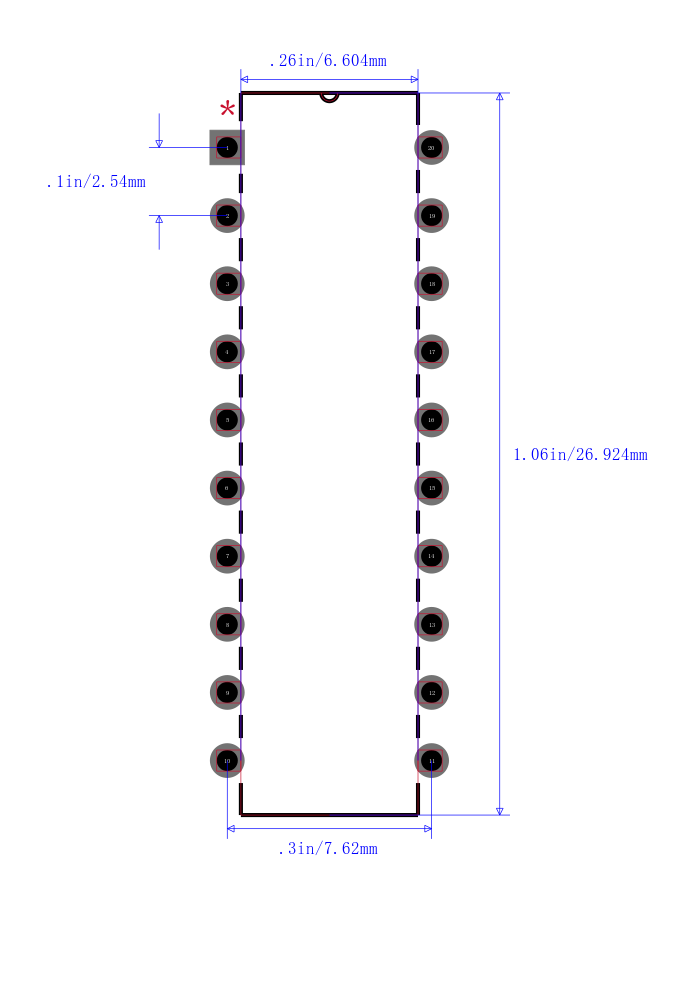

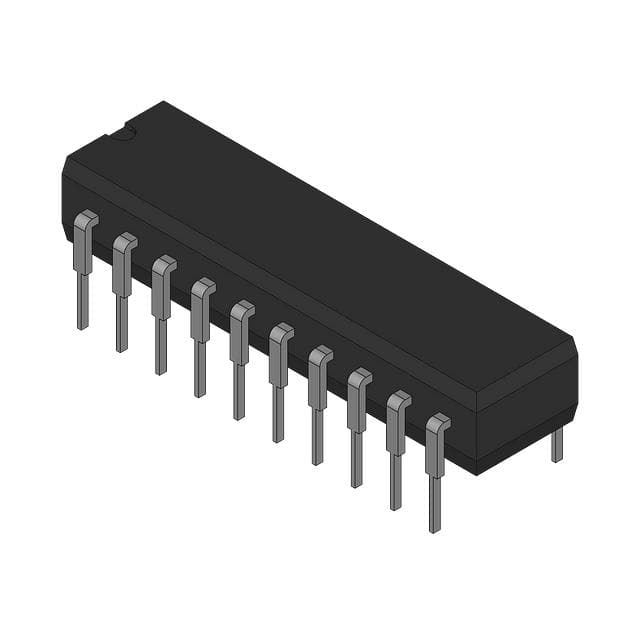

封装 PDIP-20
封装 PDIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALS561AN TI 德州仪器 | 当前型号 | 当前型号 |
SNJ54ALS561AJ 德州仪器 | 功能相似 | SN74ALS561AN和SNJ54ALS561AJ的区别 |
