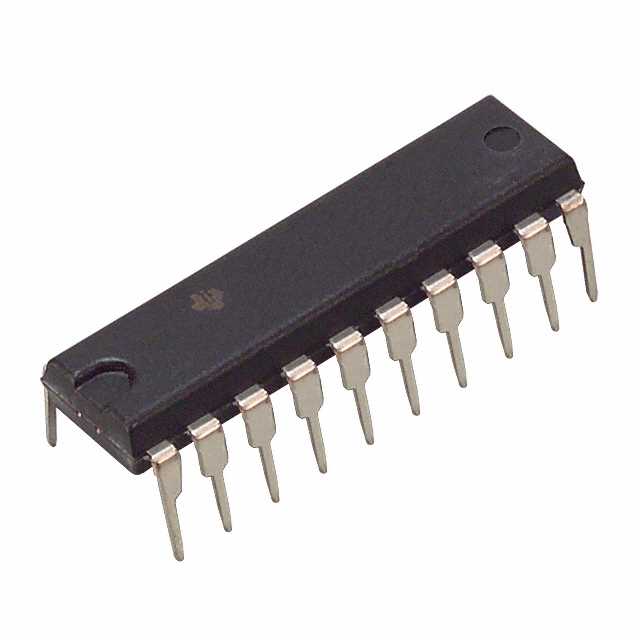

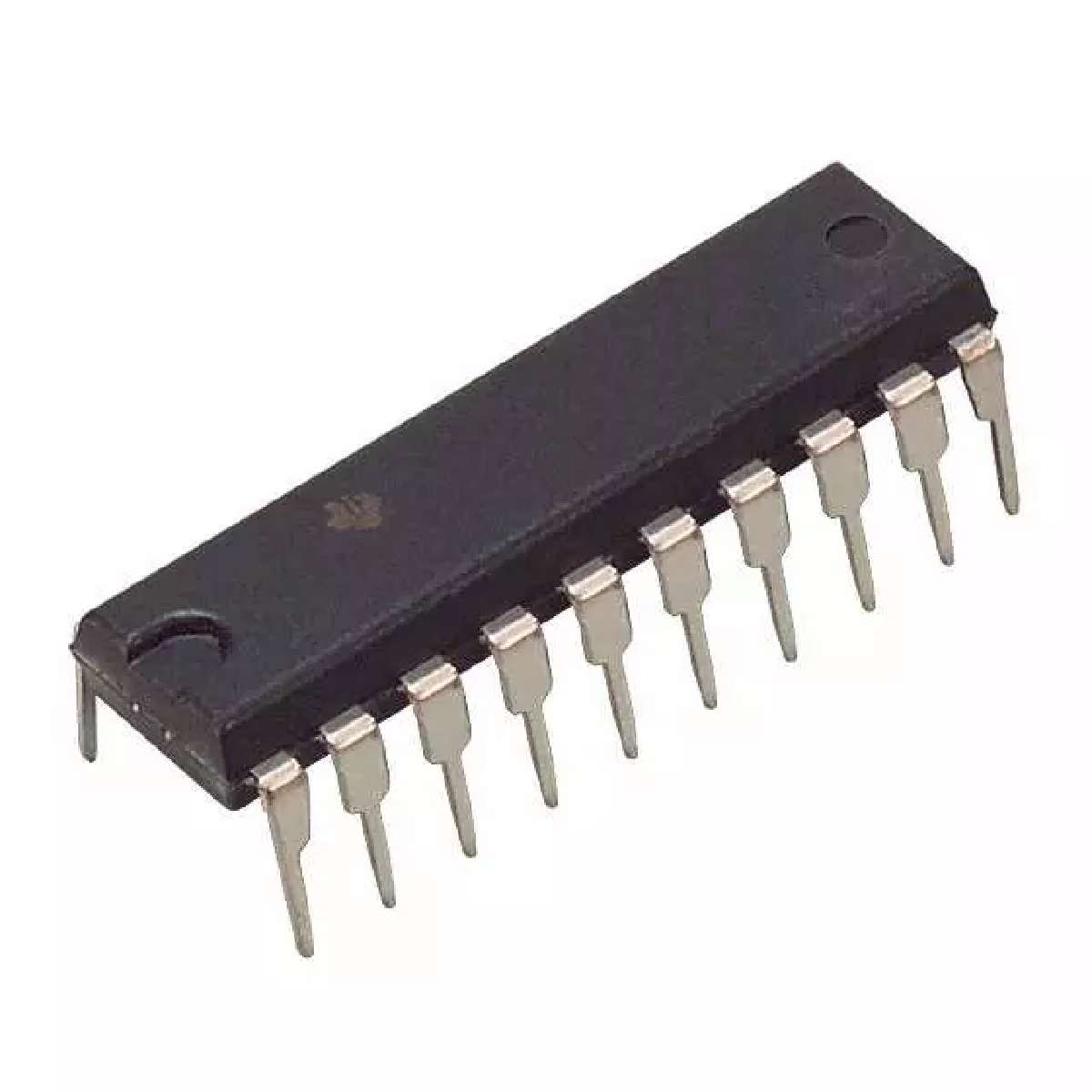

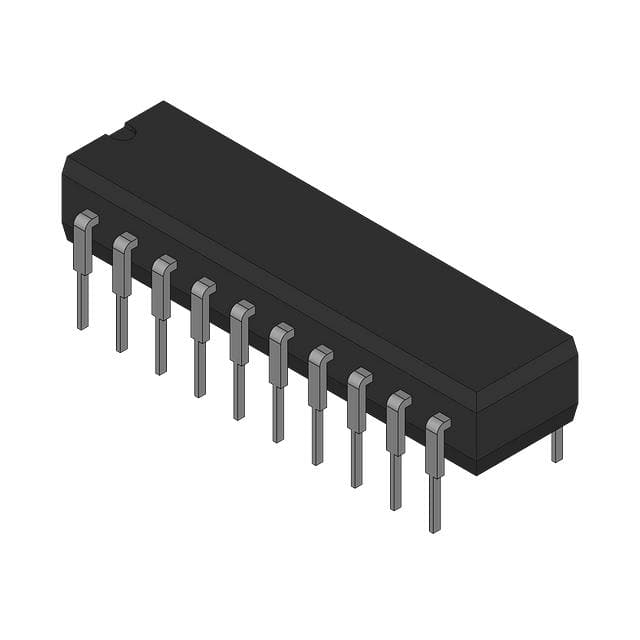

TEXAS INSTRUMENTS SN74LS697N 逻辑芯片, 同步向上/向下二进制计数器, 20DIP
This binary counter shift register from Texas Instruments can be optimized in any circuit which contains numerous states, it will help maintain and switch into other states. With a 3-state output, this is power management at its best. This counter shift register has an operating temperature range of 0 °C to 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
频率 20 MHz
电源电压DC 4.75V ~ 5.25V
输出接口数 4
电路数 1
针脚数 20
时钟频率 20 MHz
位数 4
电压波节 5.00 V
输出电流驱动 -108 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 20
封装 PDIP-20
长度 24.33 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-20
重量 0.0191855977428 kg
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS697N TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS697NE4 德州仪器 | 类似代替 | SN74LS697N和SN74LS697NE4的区别 |
SN74LS699N 德州仪器 | 功能相似 | SN74LS697N和SN74LS699N的区别 |
SNJ54LS697J 德州仪器 | 功能相似 | SN74LS697N和SNJ54LS697J的区别 |
