八路D型透明锁存器带3态输出 OCTAL D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS
Do you want complete control of real time information? Implement this d-type low-level latch from Texas Instruments. With a 3-state output, this is power management at its best. This latch has an operating temperature range of 0 °C to 70 °C. This device comes in tube packaging. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 1.00 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 24 mA
位数 8
传送延迟时间 18.0 ns
电压波节 5.00 V
输出电流驱动 -108 µA
输入数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 20

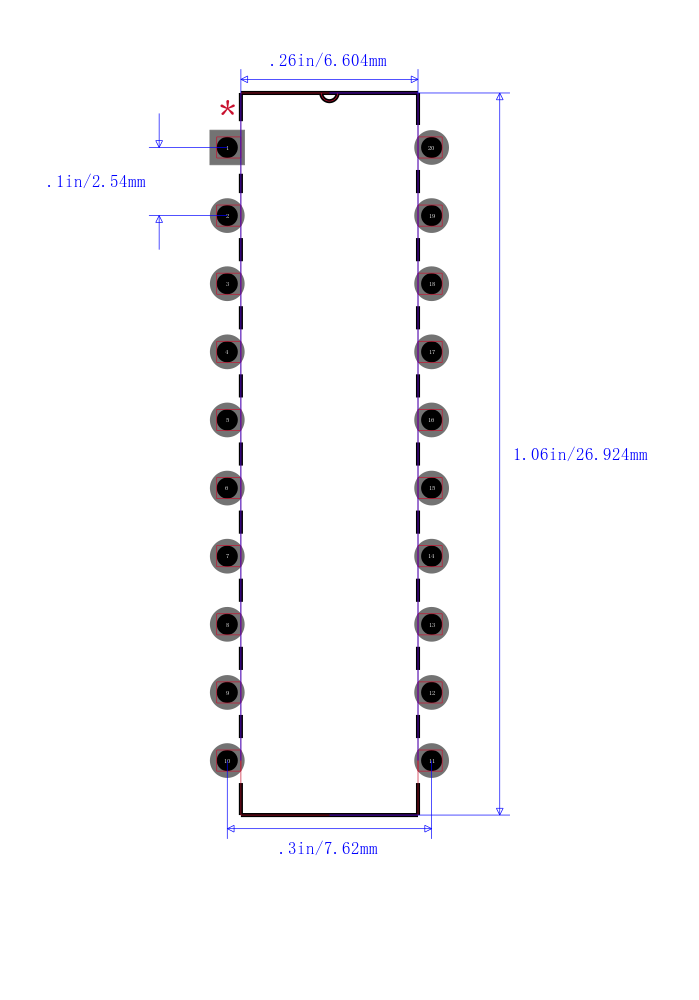

封装 PDIP-20
封装 PDIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALS563BN TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALS563BNE4 德州仪器 | 完全替代 | SN74ALS563BN和SN74ALS563BNE4的区别 |
DM74ALS563ANX 飞兆/仙童 | 功能相似 | SN74ALS563BN和DM74ALS563ANX的区别 |
