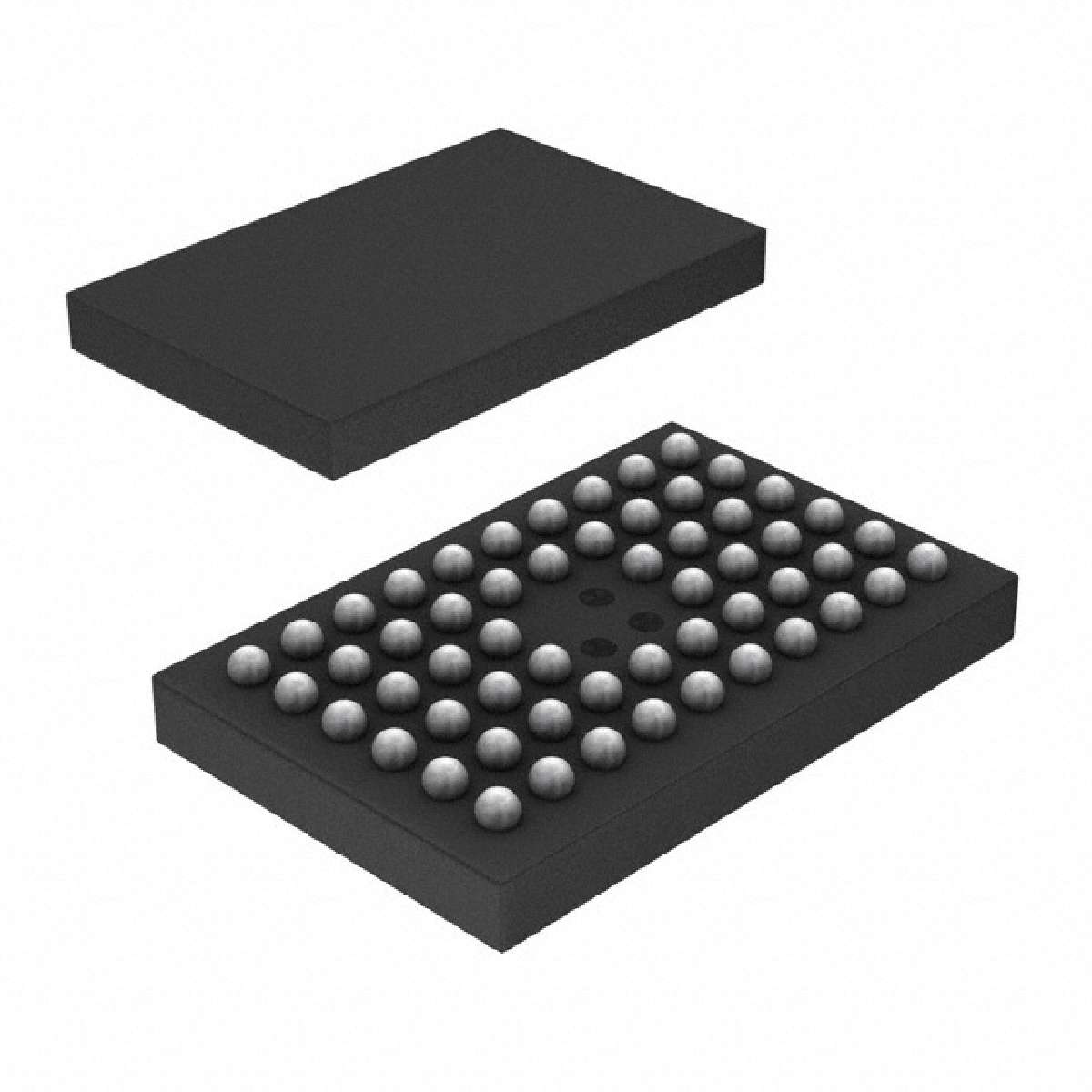

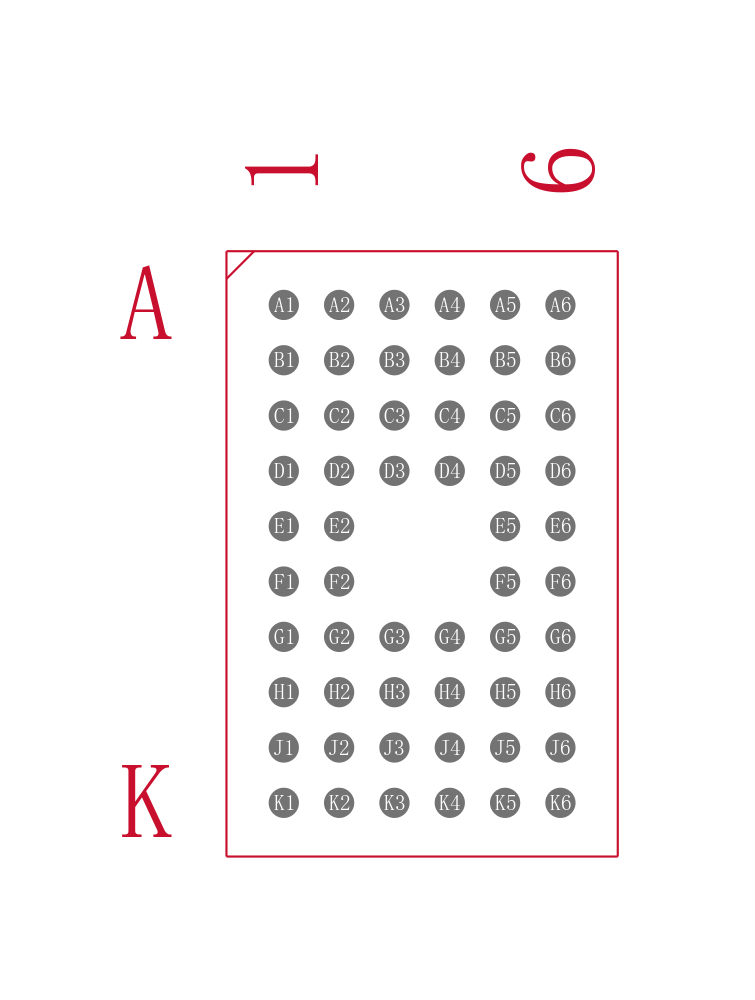

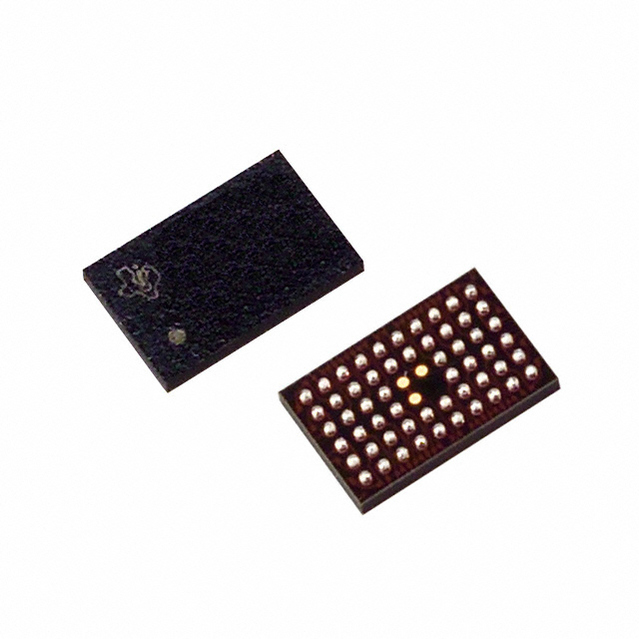

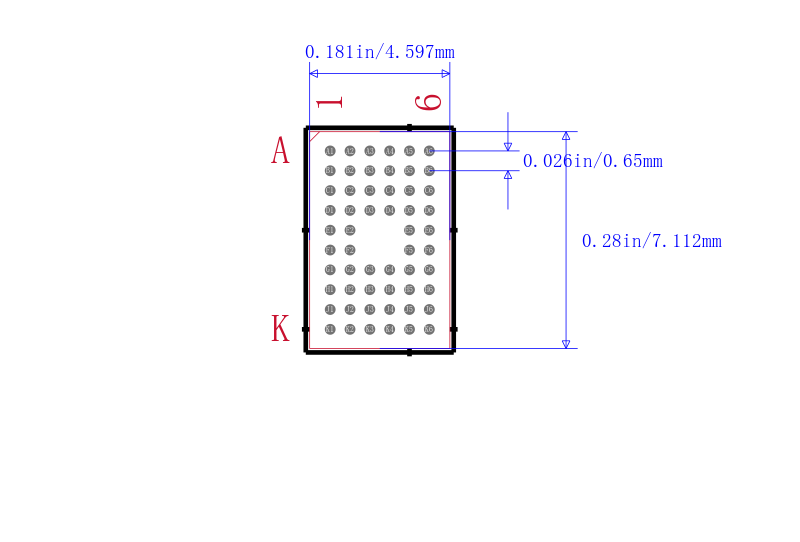

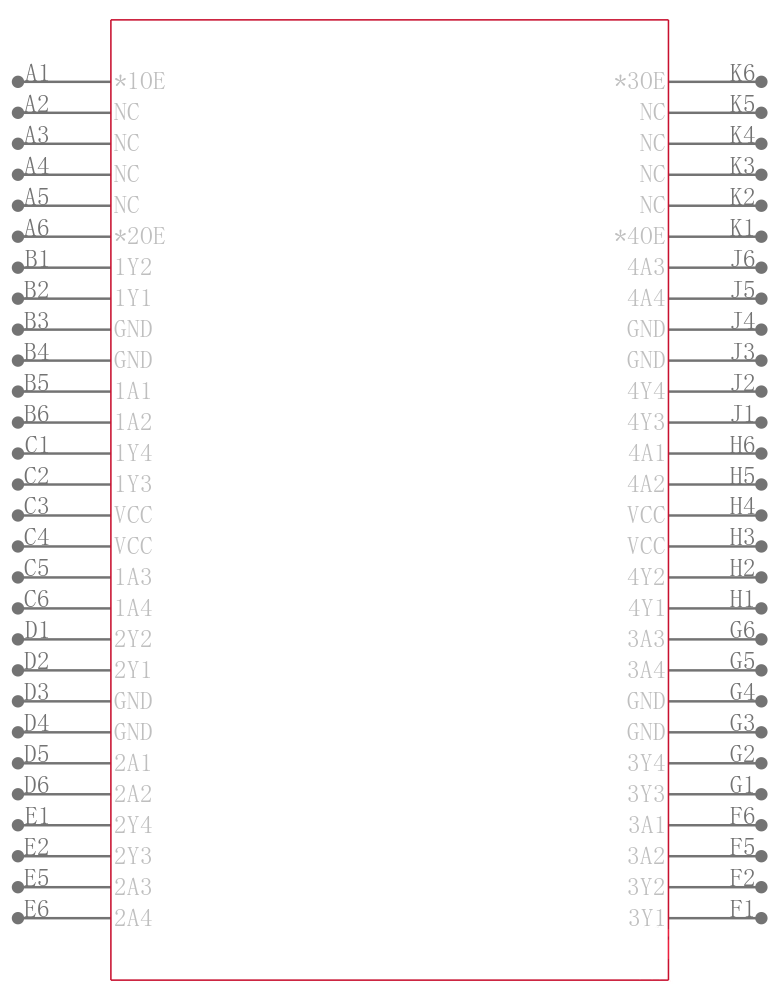

SN74AVC16244GQLR

16位缓冲器/驱动器，具有三态输出 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS

DESCRIPON/ORDERING INFORMATION

A Dynamic Output Control DOC circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit.

FEATURES

• Member of the Texas Instruments Widebus™ Family

• DOC™ Dynamic Output Control Circuit Dynamically Changes Output Impedance, Resulting in Noise Reduction Without Speed Degradation

• Less Than 2-ns Maximum Propagation Delay at 2.5-V and 3.3-V VCC

• Dynamic Drive Capability Is Equivalent to Standard Outputs With IOH and IOL of ±24 mA at 2.5-V VCC

• Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

  – 2000-V Human-Body Model A114-A

  – 200-V Machine Model A115-A
