HEX缓冲器/带集电极开路高压输出驱动程序 HEX BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS

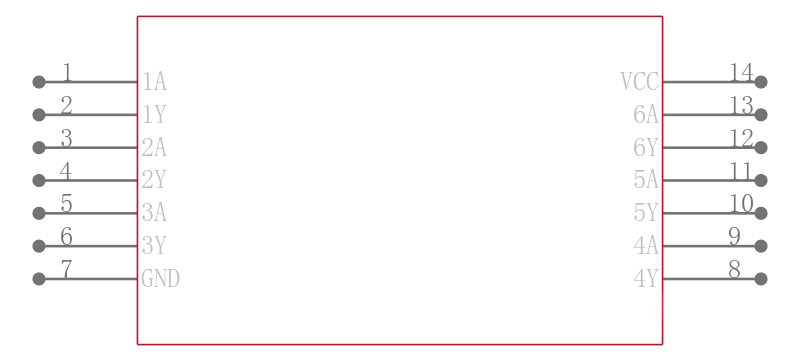

description/ordering information
These TTL hex buffers/drivers feature high-voltage open-collector outputs for interfacing
with high-level circuits such as MOS or for driving high-current loads such as lamps or
relays and also are characterized for use as buffers for driving TTL inputs. The SN5407 and
SN7407 have minimum breakdown voltages of 30 V, and the SN5417 and SN7417 have
minimum breakdown voltages of 15 V. The maximum sink current is 30 mA for the SN5407
and SN5417 and 40 mA for the SN7407 and SN7417.
These devices perform the Boolean function Y = A in positive logic.
Convert TTL Voltage Levels to MOS Levels
High Sink-Current Capability
Input Clamping Diodes Simplify System Design
Open-Collector Driver for Indicator Lamps and Relays
Inputs Fully Compatible With Most TTL Circuits
