18位LVTTL - TO- GTL / GTL通用总线收发器 18-BIT LVTTL-TO-GTL/GTL UNIVERSAL BUS TRANSCEIVERS
The Texas Instruments level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 3.3/5 V. Its minimum operating supply voltage of 3.15/4.75 V, while its maximum is 3.45/5.25 V.
电源电压DC 5.00 V, 5.25 V max
输出电流 64 mA
电路数 18 Bit
通道数 18
时钟频率 95.0MHz max
位数 18
电压波节 5.00 V, 3.30 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.15V ~ 3.45V
电源电压Max 3.45 V
电源电压Min 3.15 V
安装方式 Surface Mount
引脚数 56

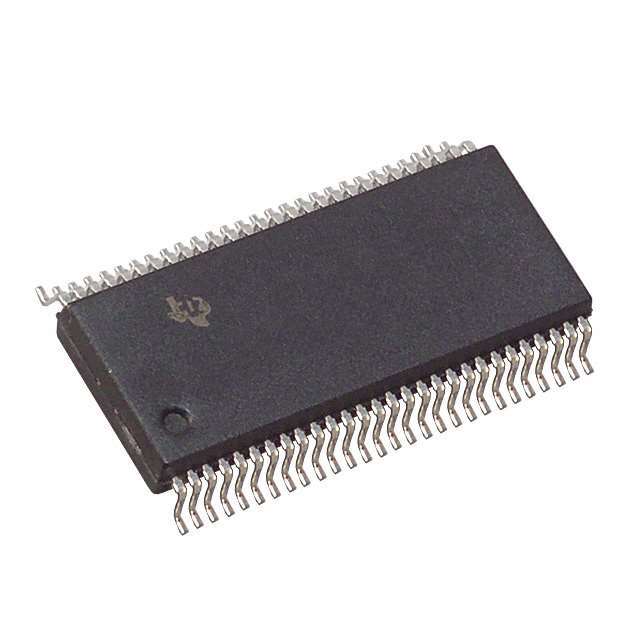

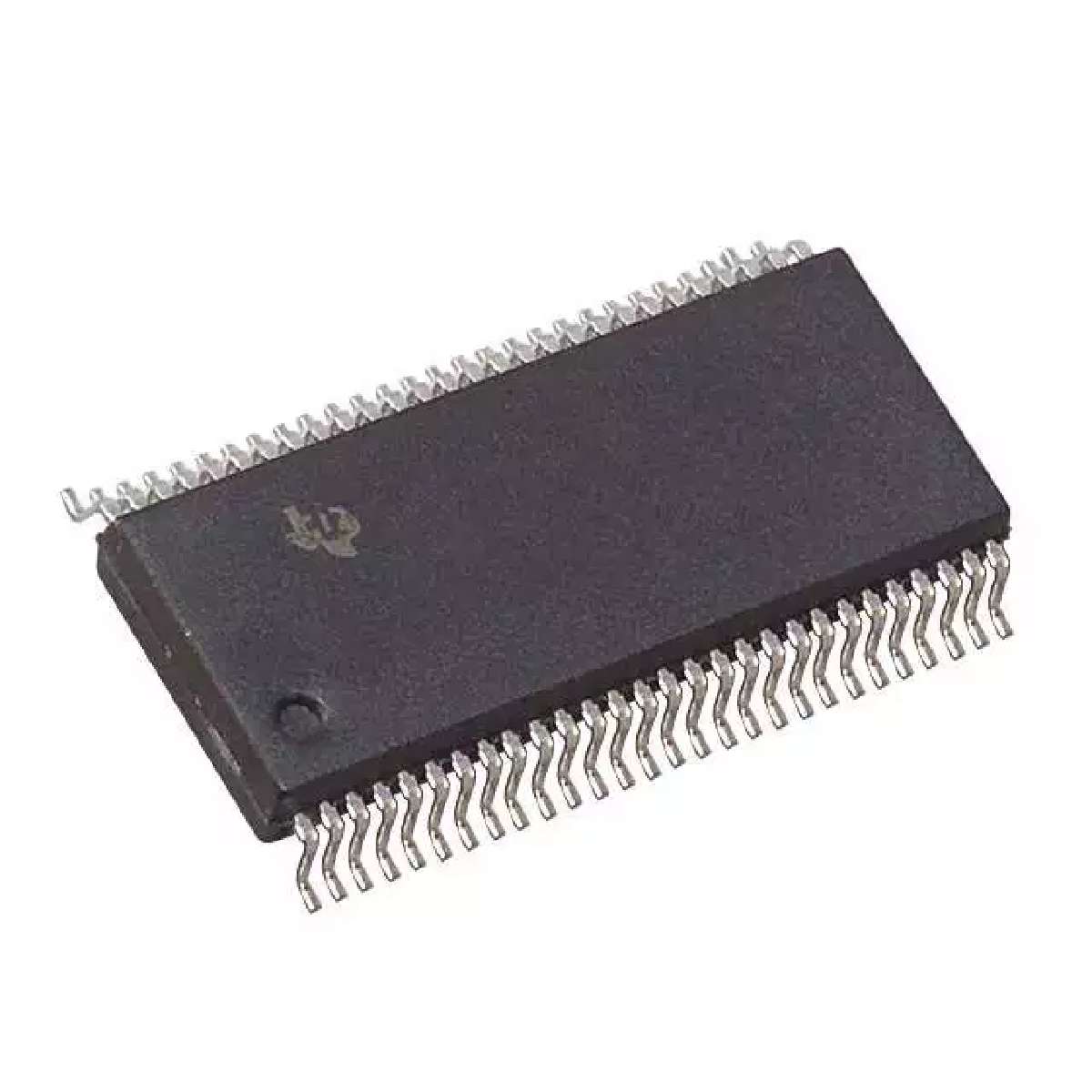

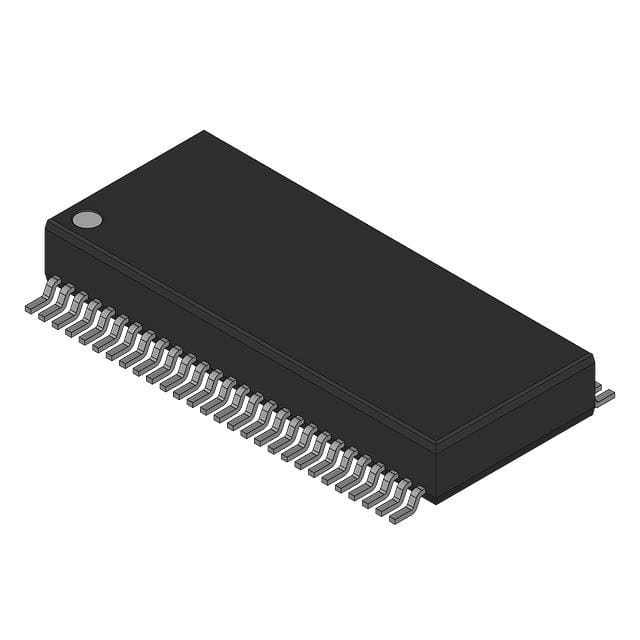

封装 SSOP-56
封装 SSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74GTL16612DL TI 德州仪器 | 当前型号 | 当前型号 |
SN74GTL16612DLR 德州仪器 | 类似代替 | SN74GTL16612DL和SN74GTL16612DLR的区别 |
