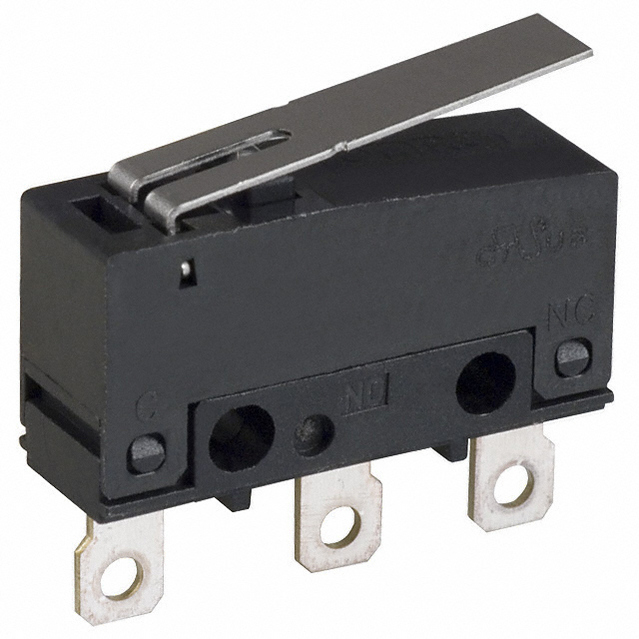

Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.5N Screw Mount
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.5N Screw Mount
欧时:
SWITCH,SUBMINIATURE,BASIC,3A,HINGE LEVER
贸泽:
Basic / Snap Action Switches 3A Hinge Lever Solder terminals
安富利:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.5N Screw Mount
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.5N Screw Mount
MASTER:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 3A 125VAC 30VDC 0.5N Screw Mount Solder
Online Components:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 3A 125VAC 30VDC 0.5N Screw Mount Solder
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 3A 125VAC 30VDC 0.5N Screw Mount Solder
Win Source:
SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
额定电压DC 30 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 3 A
绝缘电阻 100 MΩ
方向 Vertical
触点类型 SPDT
接触电阻 50.0 mΩ
额定电压DC Max 30 V
额定电压AC Max 125 V
安装方式 Chassis, Solder Lug
封装 125
长度 19.8 mm
宽度 6.4 mm
高度 20.9 mm
封装 125
触点材质 Silver Alloy
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536507000
